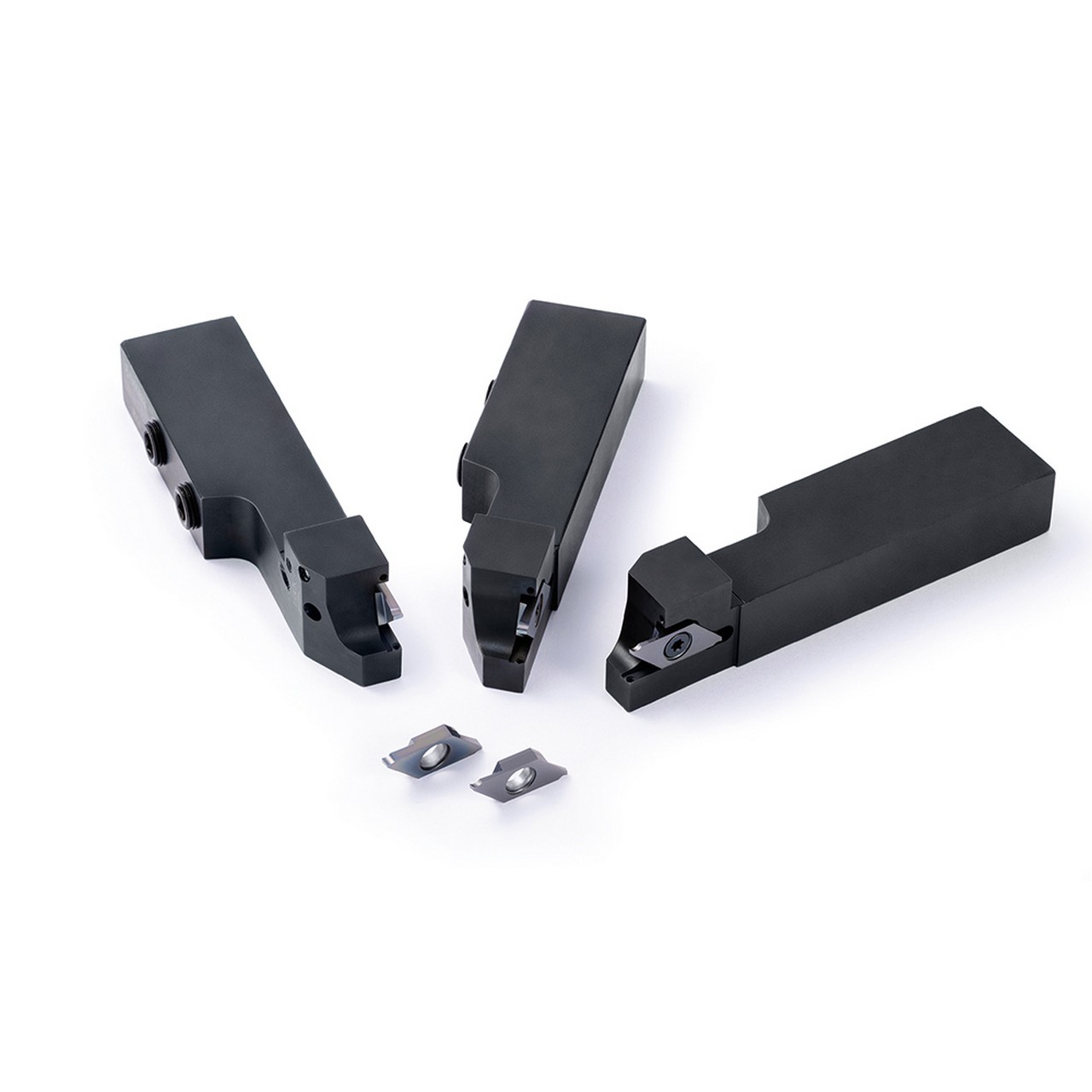

Kyocera Precision Tools TLM40180 | TKFT12RA55005 PR1725 0.0984" Cutting Width x 0.343" Thickness PVD Coated Carbide Threading Insert

$29.32
Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Parallel Pipe [G(PF)]|Tapered Pipe [R(PT), (BSPT)]|Whitworth (W)
Manufacturer's Grade:
PR1725
Finish/Coating:
PVD;Material=Carbide
SKU:
23245633
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 2 cutting edges
  • 55 Degree partial profile for parallel pipe [G(PF)], tapered pipe [R(PT), (BSPT)], whitworth (W) threads
  • MEGACOAT NANO PLUS nano-laminated coating for excellent wear resistance and welding resistance
  • Application: General purpose grade for stable machining and long tool life when turning steel and stainless steel

Product Specifications
EDP NumberTLM40180
Cutting Width (Decimal Inch)0.0984"
Cutting Width (mm)2.50mm
Cutting Width Minimum (Decimal Inch)0.0984"
Cutting Width Minimum (mm)2.50mm
Cutting Width Maximum (Decimal Inch)0.0984"
Cutting Width Maximum (mm)2.50mm
[RE] Corner Radius (Inch)0.002"
[RE] Corner Radius (mm)0.05mm
[S] Thickness (Inch)0.343"
[S] Thickness (mm)8.70mm
ApplicationExternal Threading
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Parallel Pipe [G(PF)]|Tapered Pipe [R(PT), (BSPT)]|Whitworth (W)
Manufacturer's Grade:
PR1725
Finish/Coating:
PVD;Material=Carbide
