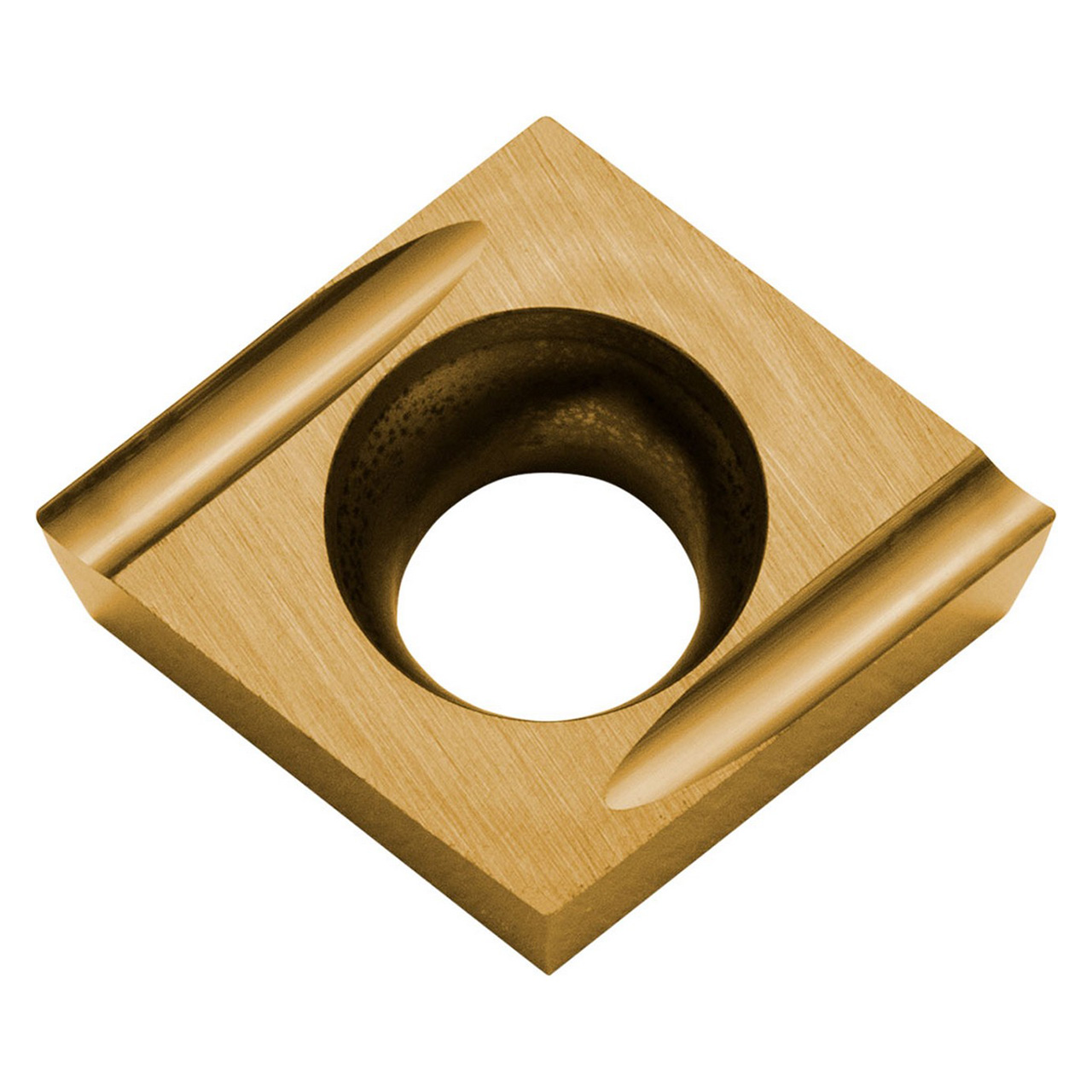

Kyocera Precision Tools TLP00036 | CCGT21502ELU PV730 1/4" Circle Diameter x 3/32" Thickness PVD Coated Cermet Indexable Turning Insert

$10.59
Brand:
Kyocera Precision Tools
Insert Style:
CCGT
Insert Size:
21502
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0040"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
PV730
SKU:
23246058
Weight:
0.04 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, boring, internal facing, sub-spindle
  • Honed edge with 2 cutting edges
  • TiAlN/TiN base PVD coated cermet
  • Finishing and heavy interruption of (P) carbon/alloy steel

Product Specifications
EDP NumberTLP00036
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring | External Turning | Facing | Internal Facing | Sub-Spindle
ChipbreakerU
Coating ProcessPVD
Cutting RangeFinishing
HandLeft Hand
Insert GradePV730
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size21502
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationHeavy Interruption
