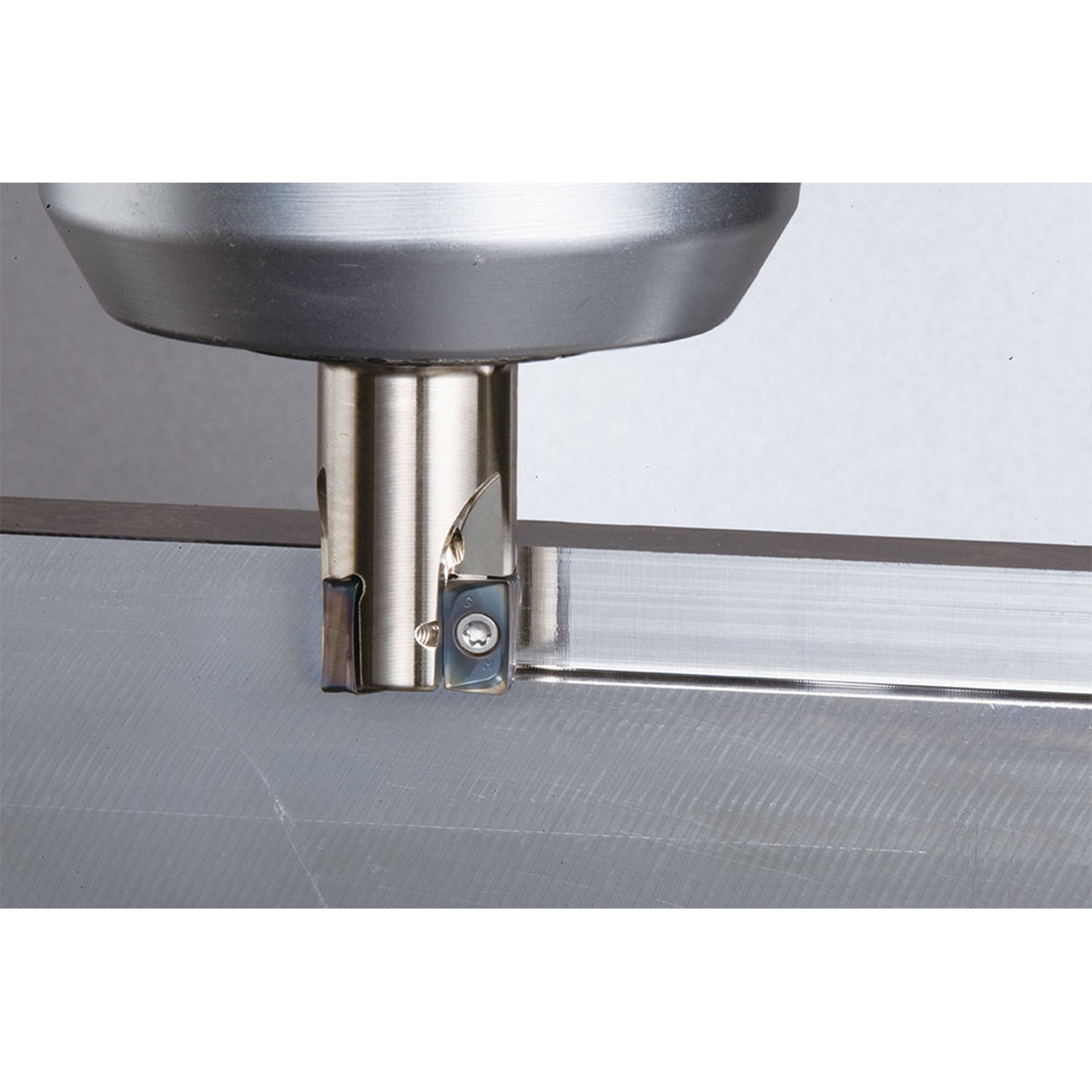

- Insert for facing, shouldering, slotting, helical milling
- Honed edge/low cutting force with 4 cutting edges
- high heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
- Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel
Product Specifications
| EDP Number | TMA04357 |
| Insert Included Angle (Degree) | 90 Degree |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.220" |
| [S] Thickness (mm) | 5.60mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-SM |
| Coating Process | CVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
150508
Material:
Carbide;Finish/Coating=CVD
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.60mm
