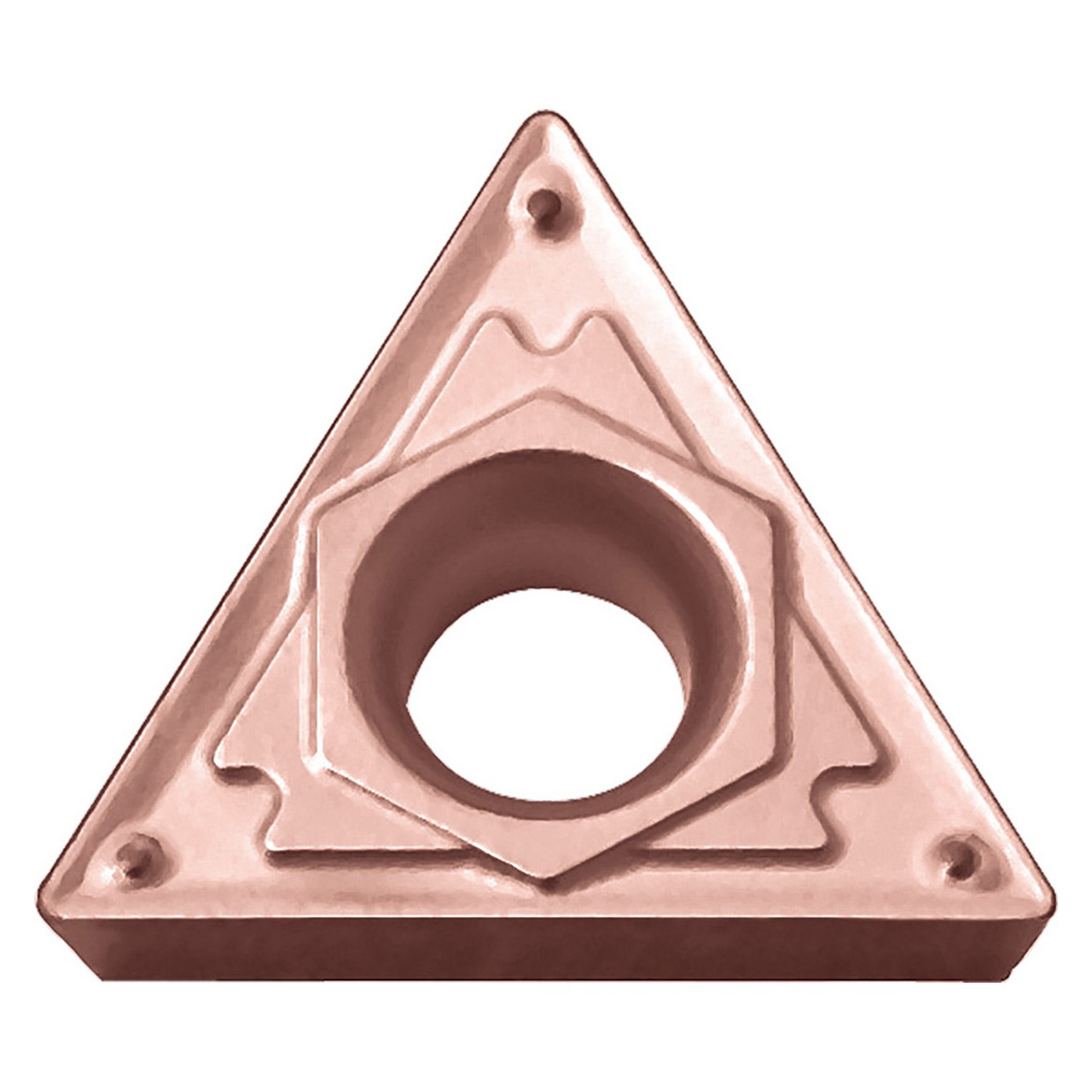

Features:
- Insert for external turning
- Cast iron with 3 cutting edges
- Improved stability with CVD layer structure with high adhesion and long tool life during heavily interrupted or high-speed machining
- Application: Roughing to heavy interrupted cutting of nodular cast iron
Product Specifications
| EDP Number | TME05901 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | External Turning |
| Chipbreaker | HQ |
| Coating Process | CVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | CA320 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 3252 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Nodular Cast Iron (K) |
| Usage Classification | Heavy Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TCMT
Insert Size:
3252
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
CA320
