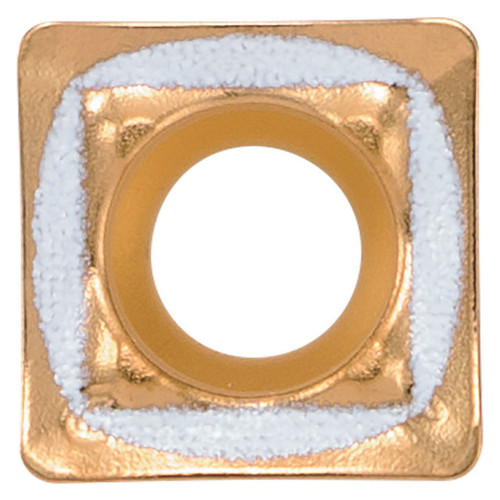

Features:
- Outboard insert for drilling
- General purpose chipbreaker for stable deep-hole drilling
- High speed CVD grade for cast iron drilling
Product Specifications
| Tool Number | TMG05690 |
| Insert Included Angle (Degree) | 90 |
| Inscribed Circle (Inch) | 0.358" |
| Inscribed Circle (mm) | 9.10mm |
| Corner Radius (Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Thickness (Inch) | 0.161" |
| Thickness (mm) | 4.10mm |
| Application | Drilling |
| Chipbreaker | GM-E |
| Coating Process | CVD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | CA415D |
| Insert Shape | 90 Degree Square |
| Insert Size | 090405 |
| Material | Carbide |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron (K) |
| Usage Classification |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SCMT
Insert Size:
090405
Material:
Carbide;Manufacturer's Grade=CA415D"
Inscribed Circle (Decimal Inch):
0.3580"
Inscribed Circle (mm):
9.10mm
Thickness (Decimal Inch):
0.1610"
Thickness (mm):
4.10mm
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.50mm
