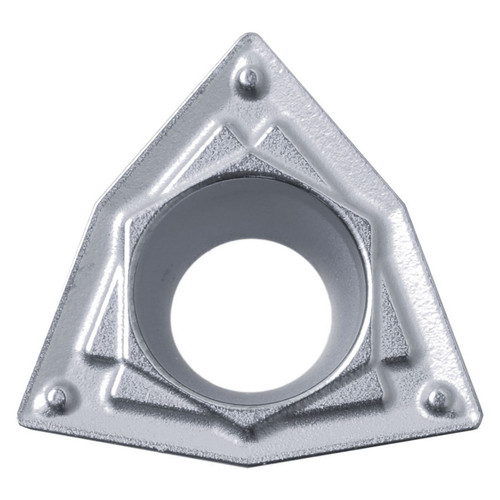

Kyocera Precision Tools TSJ03870 | WPMT2151HQ TN60 1/4" Circle Diameter x 3/32" Thickness Uncoated Cermet Indexable Turning Insert

$5.86
Brand:
Kyocera Precision Tools
Insert Style:
WPMT
Insert Size:
2151
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
TN60
SKU:
23249543
Weight:
0.04 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for boring
  • 3 Cutting edges
  • General purpose cermet with superior wear resistance and toughness
  • Application: Cutting of steel and stainless steel

Product Specifications
EDP NumberTSJ03870
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring
ChipbreakerHQ
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert GradeTN60
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Trigon
Insert Included Angle ( Degree)80 Degree
Insert Size2151
MaterialCermet
Number of Cutting Edges3
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
WPMT
Insert Size:
2151
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
TN60
