Features:

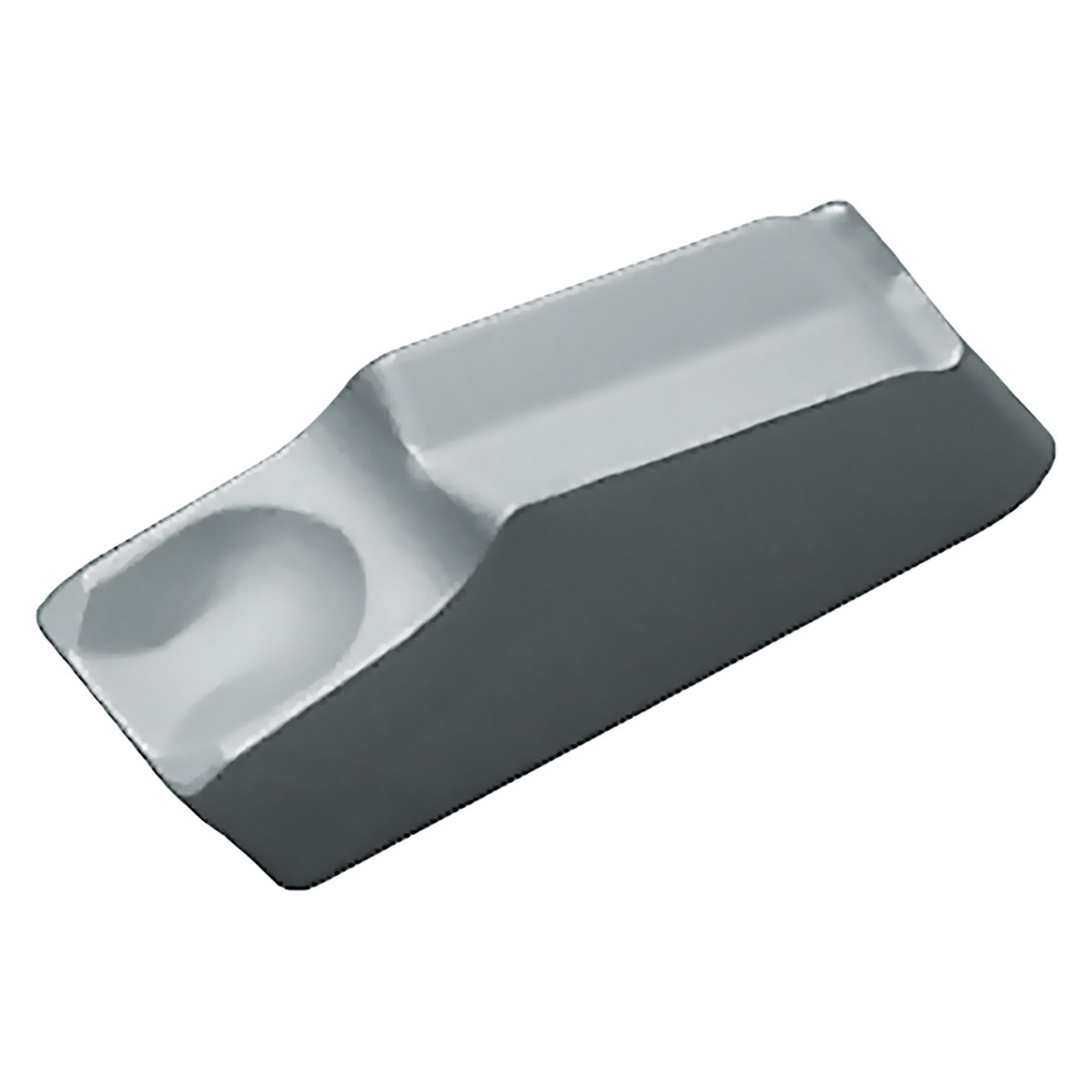

- Insert for Cut-Off
- 1 Cutting edge
- Cermet with great surface finish eliminates many secondary operations
- Application: For grooving and cut-off of steel
Product Specifications
| Tool Number | TSO15150 |
| Cutting Width (Decimal Inch) | 0.1221" |
| Cutting Width (mm) | 3.10mm |
| Cutting Width Minimum (Decimal Inch) | 0.1221" |
| Cutting Width Minimum (mm) | 3.10mm |
| Cutting Width Maximum (Decimal Inch) | 0.1221" |
| Cutting Width Maximum (mm) | 3.10mm |
| Corner Radius (Inch) | 0.010" |
| Corner Radius (mm) | 0.25mm |
| Application | Cut-Off |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Self Clamp |
| Insert Grade | TN90 |
| Insert Size | 3 |
| Material | Cermet |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Cermet;Insert Style=TKN"
Insert Size:
3
Lead Angle Direction:
Neutral
Cutting Width (Decimal Inch):
0.1221"
Cutting Width (mm):
3.10mm
Manufacturer's Grade:
TN90
Series:
KTKC
