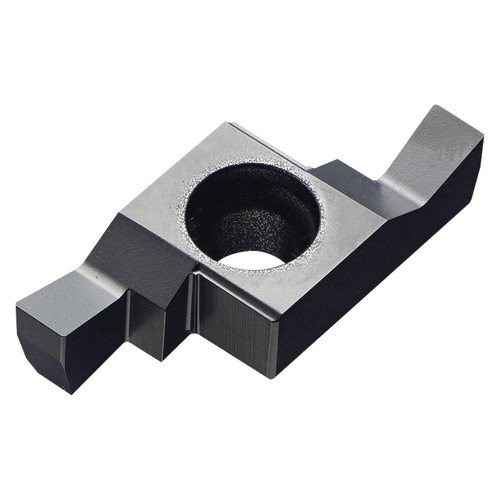

Features:
- Insert for internal grooving
- 2-Edge
- 2 Cutting edges
- Super micro-grain cermet with excellent wear resistance and toughness
- Application: First choice cermet for steel and stainless steel cutting
Product Specifications
| Tool Number | TSQ17060 |
| Max Depth of Cut (Decimal Inch) | 0.0984" |
| Max Depth of Cut (mm) | 2.50mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Insert Length (Decimal Inch) | 0.6472" |
| Insert Length (mm) | 16.44mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 0.199" |
| Thickness (mm) | 5.05mm |
| Application | Internal Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | TN6020 |
| Insert Size | 100005 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GE
Insert Size:
100005
Material:
Cermet;Cutting Width (Decimal Inch)=0.0394"""
Cutting Width (mm):
1.00mm
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.50mm
Manufacturer's Grade:
TN6020
Finish/Coating:
Uncoated
