Features:

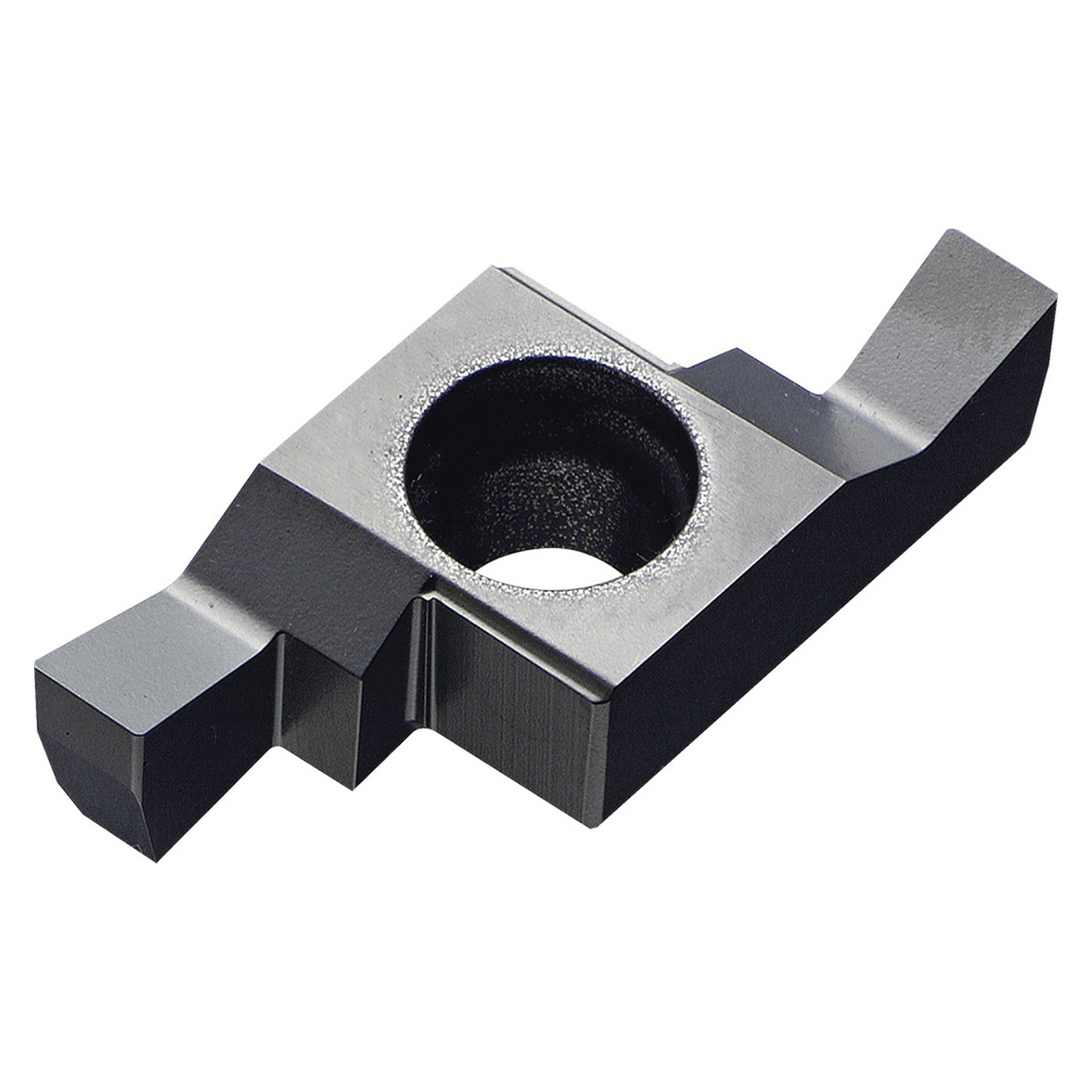

- Insert for internal grooving
- 2-Edge
- 2 Cutting edges
- Super micro-grain cermet with excellent wear resistance and toughness
- Application: First choice cermet for steel and stainless steel cutting
Product Specifications
| Tool Number | TSQ17212 |
| Max Depth of Cut (Decimal Inch) | 0.1181" |
| Max Depth of Cut (mm) | 3.00mm |
| Cutting Width (Decimal Inch) | 0.0669" |
| Cutting Width (mm) | 1.70mm |
| Cutting Width Minimum (Decimal Inch) | 0.0669" |
| Cutting Width Minimum (mm) | 1.70mm |
| Cutting Width Maximum (Decimal Inch) | 0.0669" |
| Cutting Width Maximum (mm) | 1.70mm |
| Insert Length (Decimal Inch) | 0.8528" |
| Insert Length (mm) | 21.66mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 7/32" |
| Thickness (mm) | 5.56mm |
| Application | Internal Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | TN6020 |
| Insert Size | 170010 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GE
Insert Size:
170010
Material:
Cermet;Cutting Width (Decimal Inch)=0.0669"""
Cutting Width (mm):
1.70mm
Maximum Depth of Cut (Decimal Inch):
0.1181"
Maximum Depth of Cut (mm):
3.00mm
Manufacturer's Grade:
TN6020
Finish/Coating:
Uncoated
