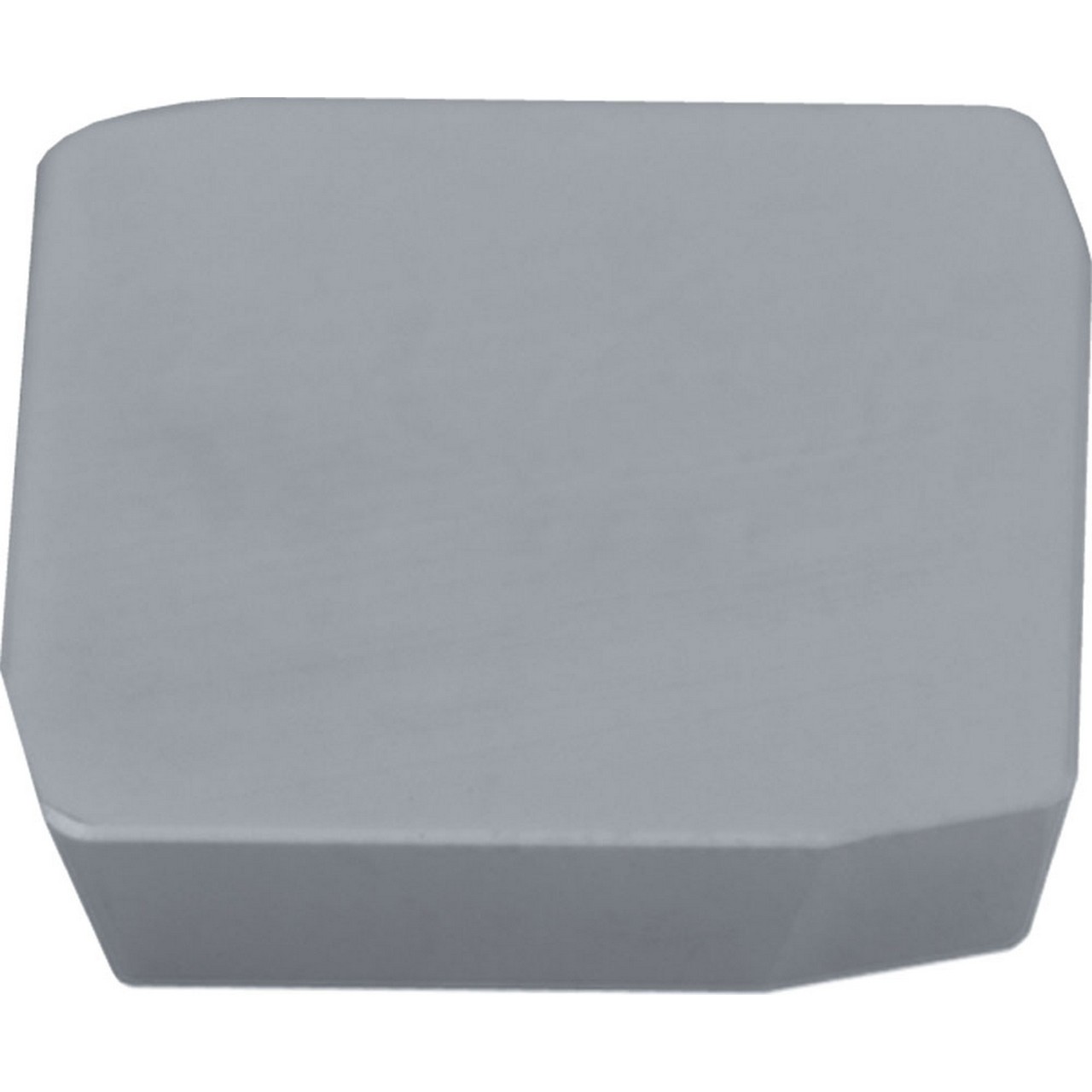

- Insert for milling
- Sharp edge with 4 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
EDP Number | TWE00815 |
Insert Included Angle (Degree) | 90 Degree |
Inscribed Circle (Inch) | 5/8" |
[IC] Inscribed Circle (mm) | 15.875mm |
[S] Thickness (Inch) | 3/16" |
[S] Thickness (mm) | 4.76mm |
Application | Chamfering | Facing | Shouldering |
Chipbreaker | EDFR |
Coating Process | Uncoated |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
53
Material:
Carbide;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.6300"
Inscribed Circle (mm):
15.875mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.76mm
