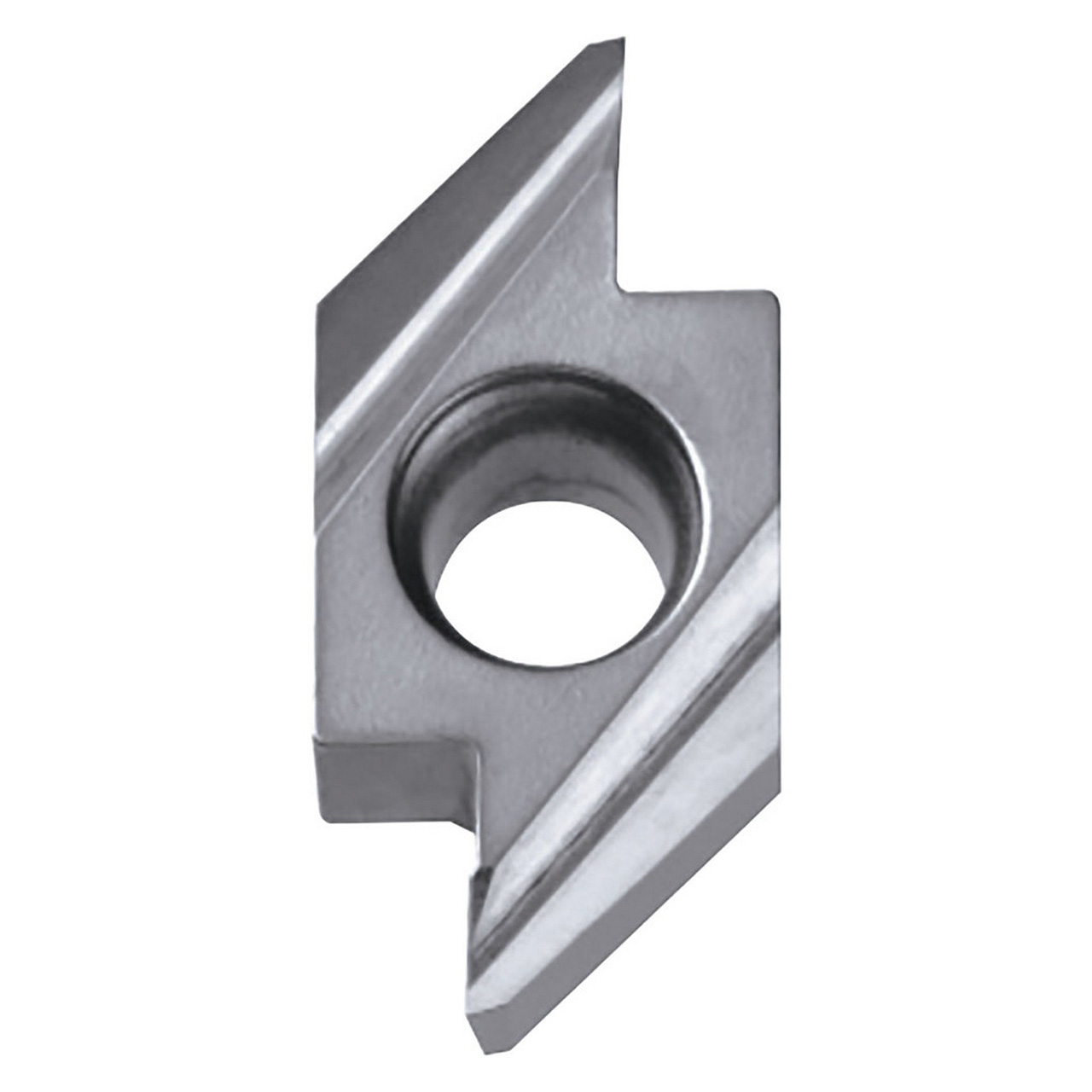

Features:
- Insert for back turning
- 2 Cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE01200 |
| Cutting Width (Decimal Inch) | 0.2756" |
| Cutting Width (mm) | 7.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.2756" |
| Cutting Width Minimum (mm) | 7.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.2756" |
| Cutting Width Maximum (mm) | 7.00mm |
| Insert Length (Decimal Inch) | 0.6063" |
| Insert Length (mm) | 15.40mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | Back Turning |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | Irregular |
| Insert Size | 15-4005 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
ABW
Insert Size:
15-4005
Material:
Carbide;Thickness (Inch)=5/32"""
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Manufacturer's Grade:
KW10
