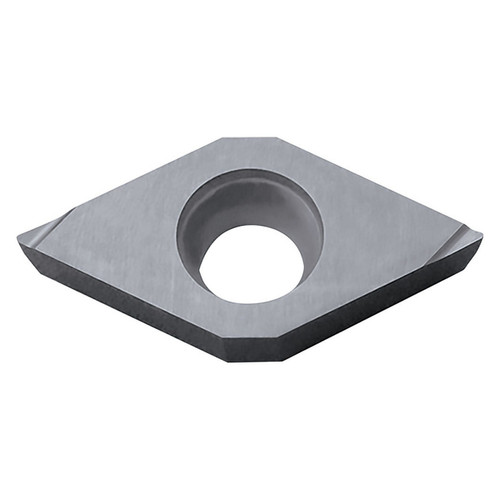

Features:
- Insert for external turning, copying, back boring, sub-spindle
- Sharp edge/non-ferrous metals with 2 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE04540 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | Back Boring | Copying | External Turning | Sub-Spindle |
| Chipbreaker | A3 |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 32505 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
DCGT
Insert Size:
32505
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
KW10
