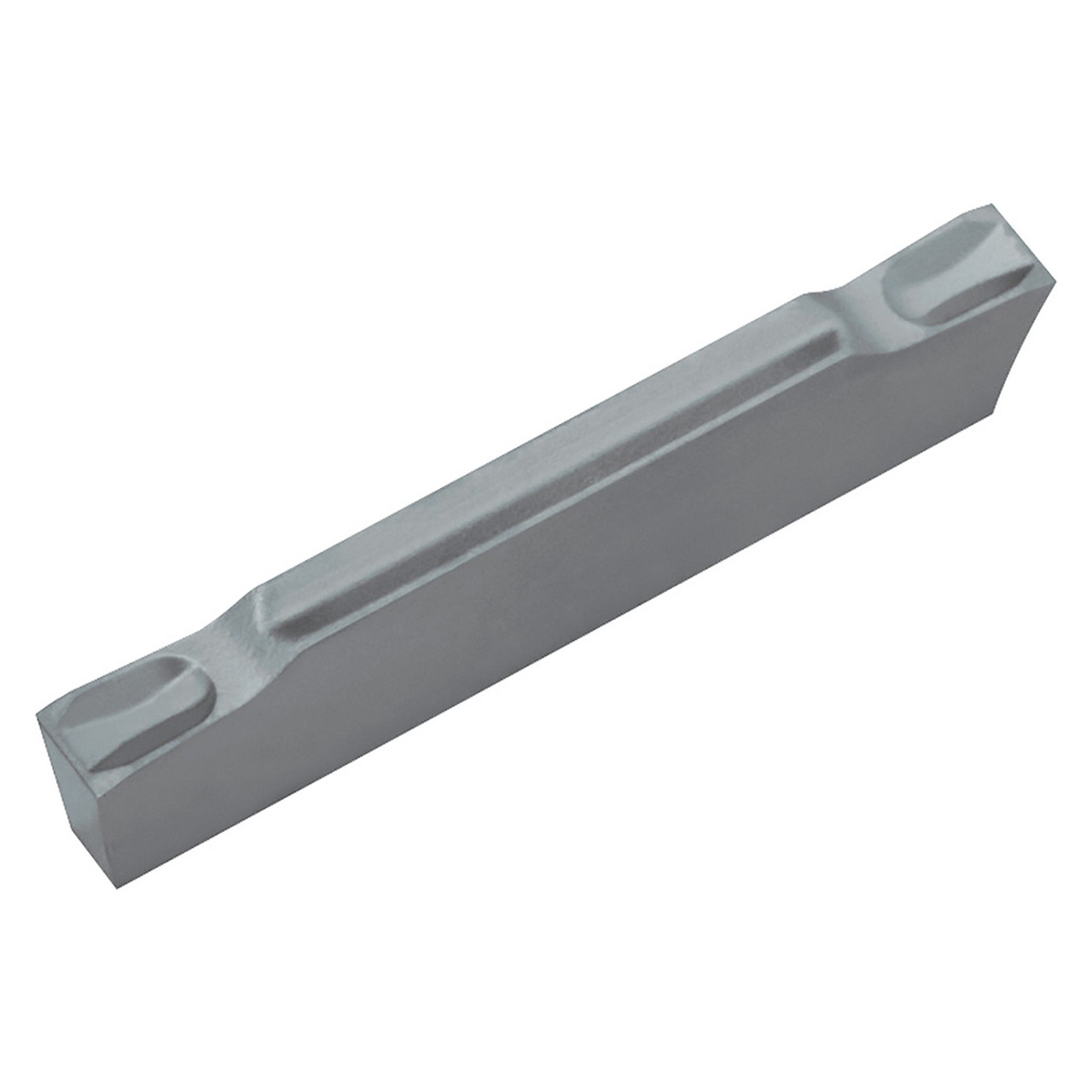

Features:
- Insert for deep grooving, cut-off
- Cut-off/sharp cutting/oriented with lead angle
- 2 Cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
Tool Number | TWE12720 |
Max Depth of Cut (Decimal Inch) | 0.6693" |
Max Depth of Cut (mm) | 17.00mm |
Cutting Width (Decimal Inch) | 0.0787" |
Cutting Width (mm) | 2.00mm |
Cutting Width Minimum (Decimal Inch) | 0.0787" |
Cutting Width Minimum (mm) | 2.00mm |
Cutting Width Maximum (Decimal Inch) | 0.0787" |
Cutting Width Maximum (mm) | 2.00mm |
Insert Length (Decimal Inch) | 0.7874" |
Insert Length (mm) | 20.00mm |
Thickness (Inch) | 0.169" |
Thickness (mm) | 4.30mm |
Application | Cut-Off | External Deep Grooving | External Grooving |
Chipbreaker | MT |
Coating Process | Uncoated |
Cutting Range | Finishing Medium |
Hand | Right Hand |
Insert Holding Method | Clamp |
Insert Grade | KW10 |
Insert Size | 2020 |
Material | Carbide |
Number of Cutting Edges | 2 |
Primary Workpiece Material | Non-Ferrous Materials (N) |
Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMM
Insert Size:
2020
Material:
Carbide;Cutting Width (Decimal Inch)=0.0787"""
Cutting Width (mm):
2.00mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
KW10
Finish/Coating:
Uncoated
