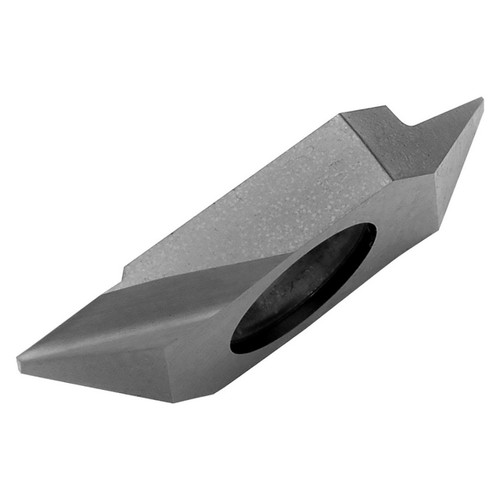

Features:
- Insert for back turning
- Minus tolerance corner radius with 2 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE16534 |
| Cutting Width (Decimal Inch) | 0.1102" |
| Cutting Width (mm) | 2.80mm |
| Cutting Width Minimum (Decimal Inch) | 0.1102" |
| Cutting Width Minimum (mm) | 2.80mm |
| Cutting Width Maximum (Decimal Inch) | 0.1102" |
| Cutting Width Maximum (mm) | 2.80mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 0.118" |
| Thickness (mm) | 3.00mm |
| Application | Back Turning |
| Coating Process | Uncoated |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw |
| Insert Shape | Irregular |
| Insert Size | 12 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TKFB
Insert Size:
12
Material:
Carbide;Thickness (Decimal Inch)=0.1180"""
Thickness (mm):
3.00mm
Corner Radius (Decimal Inch):
0.0040"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
KW10
