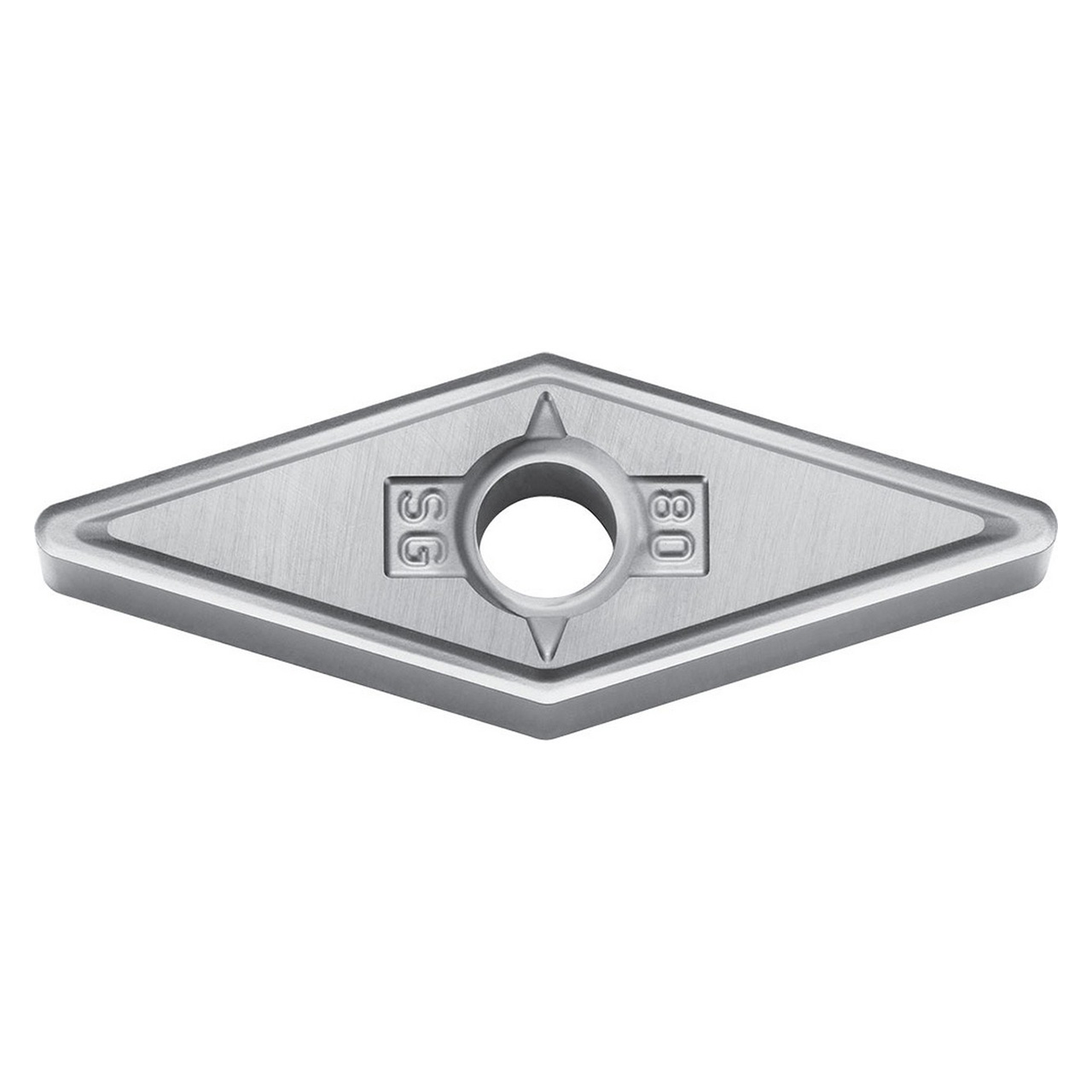

Features:
- Insert for external turning, copying, facing, undercutting
- Heat-resistant alloy with 4 cutting edges
- ISO identification symbol K carbide (K05 relevant)
- Application: Continuous cutting and finishing of titanium alloys maintaining great wear resistance
Product Specifications
| EDP Number | TWH58653 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Copying | External Turning | Facing | Undercutting |
| Chipbreaker | SG |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Cutting Range | Roughing |
| Hand | Neutral |
| Insert Grade | SW05 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 35 Degree Diamond |
| Insert Included Angle ( Degree) | 35 Degree |
| Insert Size | 331 |
| Material | Carbide |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
VNMG
Insert Size:
331
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
SW05
