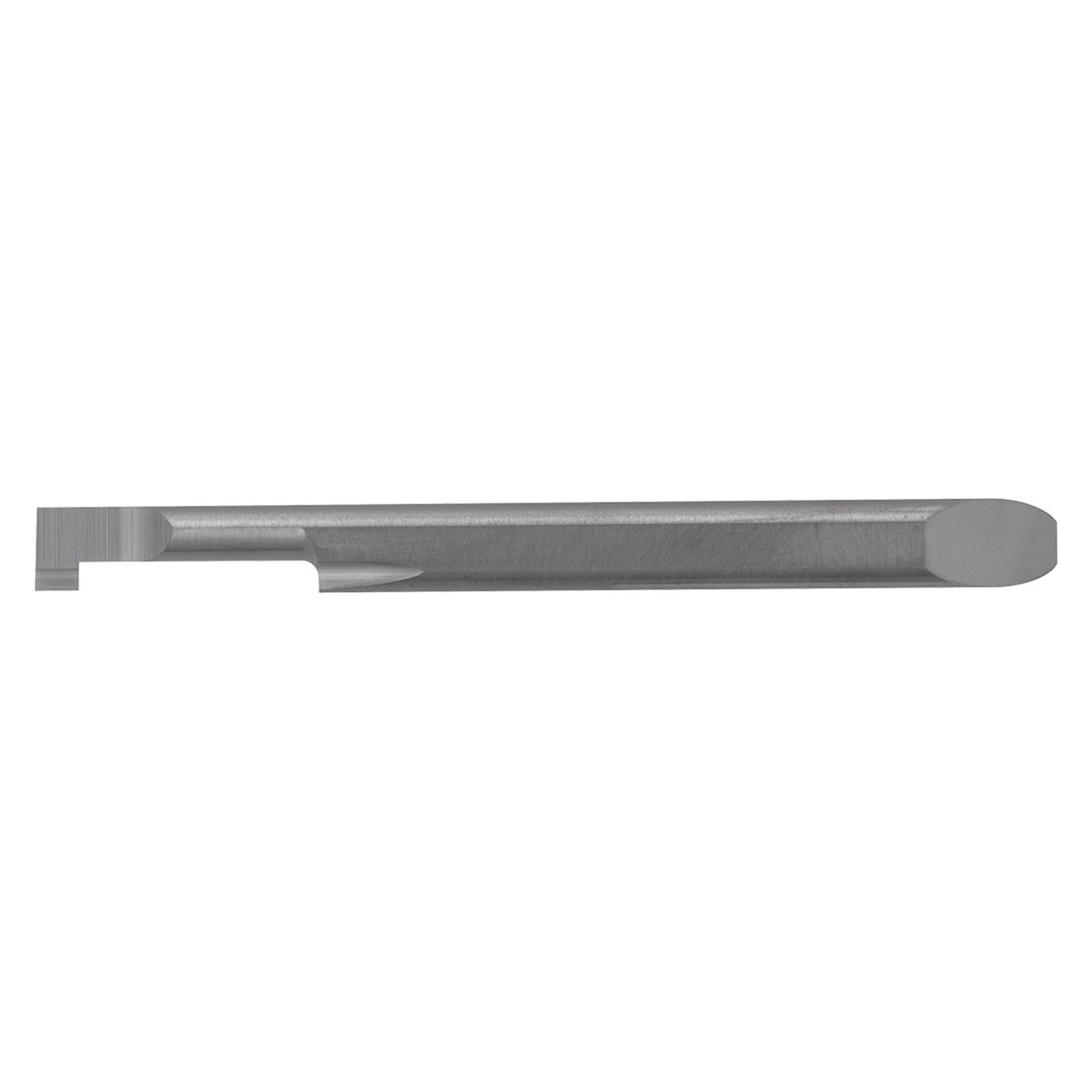

Features:
- The easy adjustment and high precision of the EZ Bar system has excellent clamping force with an adjustable overhang length
- GW05 grade EZ bars provide effiecient small diameter internal grooving of Non-Ferrous metals
Product Specifications
| EDP Number | TWJ03421 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Connection Diameter (Decimal Inch) | 0.2756" |
| Connection Diameter (mm) | 7.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.2756" |
| Minimum Bore Diameter (mm) | 7.00mm |
| Shank Height (Decimal Inch) | 0.2441" |
| Shank Height (mm) | 6.20mm |
| Tool Entering Angle ( Degree) | 92 Degree |
| Usable Length (Decimal Inch) | 0.9843" |
| Usable Length (mm) | 25.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Internal Grooving |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Grooving Type | Internal Grooving |
| Hand | Right Hand |
| Insert Grade | GW05 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
EZG
Series:
EZB;Hand of Holder=Right-Hand"
Shank Diameter (Decimal Inch):
0.2756"
Shank Diameter (mm):
7.00mm
