Product Specifications

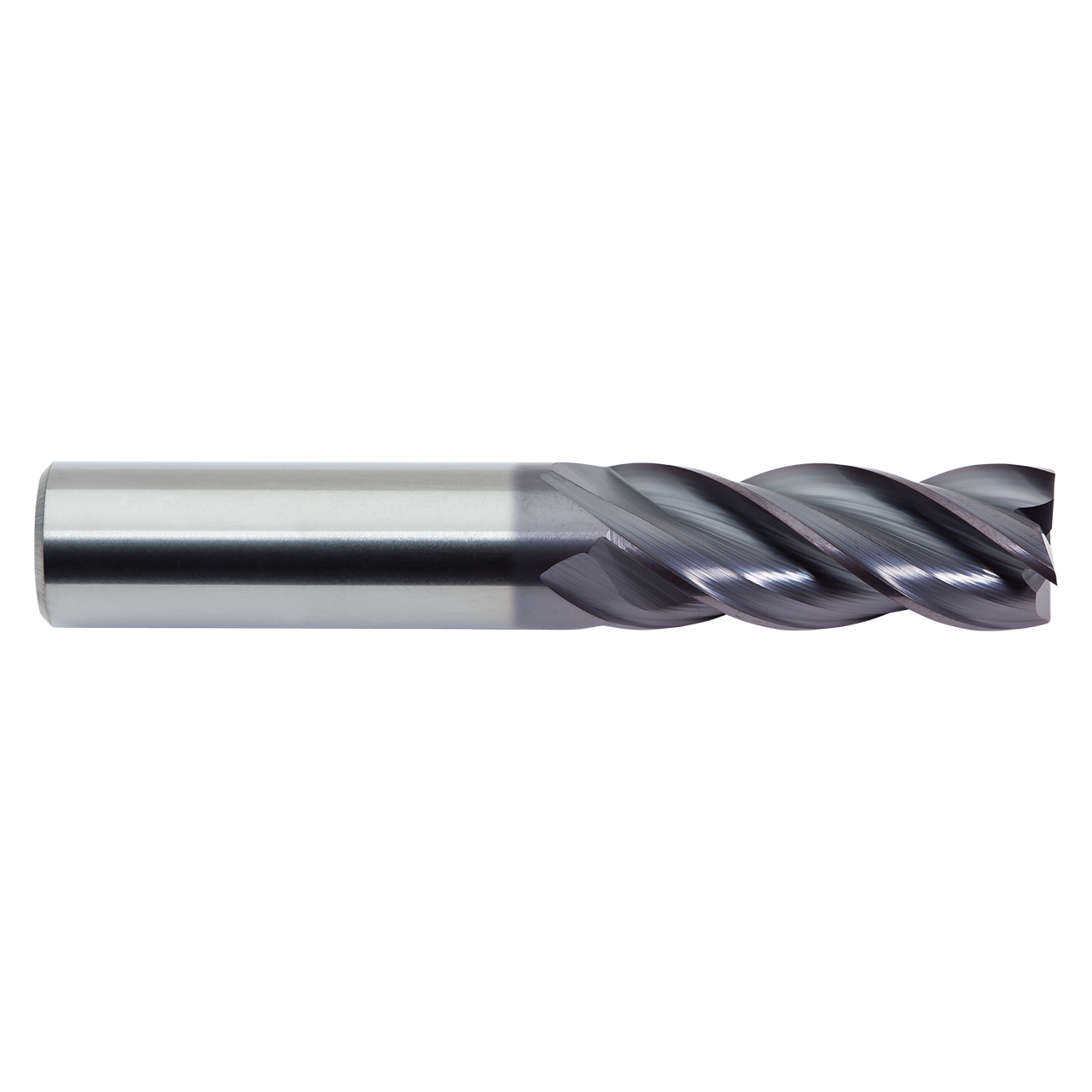

| Manufacturer Part Number | 17710012A |
| Diameter (Decimal Inch) | 1.000" |
| Corner Radius (Decimal Inch) | 0.015" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 4.000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.500" |
| Helix Angle (Degree) | 35-38 Degree |
| Number of Flutes | 4 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima |
| Material | Carbide |
| Center Cutting | Yes |
| Product Type | Corner Radius End Mill |
| Country Of Origin | USA |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
M A Ford
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Overall Length (Decimal Inch):
4.0000"
Shank Type:
Straight
Finish/Coating:
ALtima
Material:
Carbide
