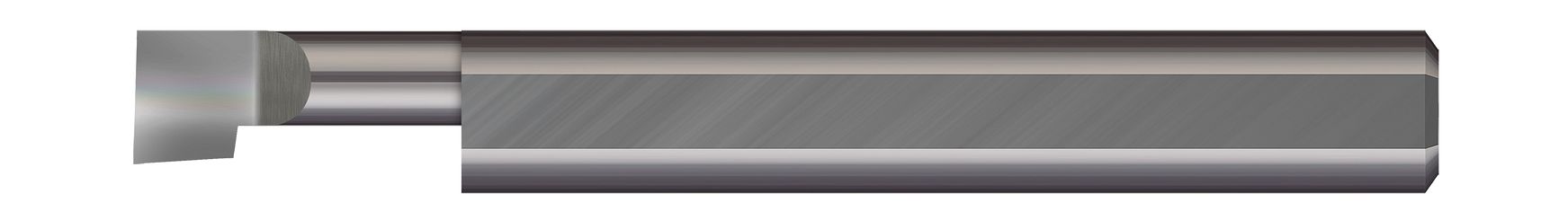

Micro 100 BB-090150S | 0.1000" Minimum Bore Diameter x 0.150" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

$24.55 $23.00
(You save $1.55)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10232742
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Designed for facing and boring applications in bores .044" and larger, this right hand, sharp boring tool is engineered with a polished split face for improved edge retention and chip evacuation.

  • Designed for facing and boring applications in bores .044" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1000"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.150"
Projection (Inch) 0.0200"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0275"
Neck Diameter (Inch) 0.0700"
Overall Length (Inch) 1.50" (1-1/2)
