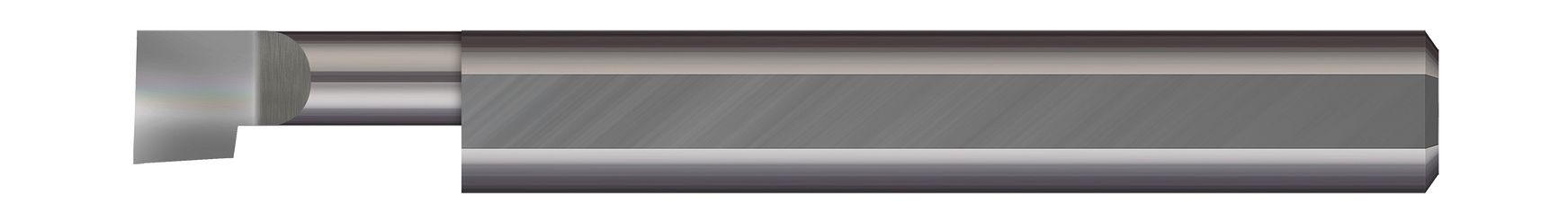

Designed for facing and boring applications in bores .044" and larger, this right hand, sharp boring tool is engineered with a polished split face for improved edge retention and chip evacuation.
- Designed for facing and boring applications in bores .044" and larger
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Sharp corner profile
- Lockdown flat automatically locates tool on center
- Coating options provide added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
Min Bore Diameter (Inch) | 0.1000" |
Hand Direction | Right Hand |
Finish/Coating | TiN |
Max Bore Depth (Inch) | 0.200" |
Projection (Inch) | 0.0200" |
Shank Diameter (Inch) | 0.1250" (1/8) |
Centerline Offset (Inch) | 0.0275" |
Neck Diameter (Inch) | 0.0700" |
Overall Length (Inch) | 1.50" (1-1/2) |
