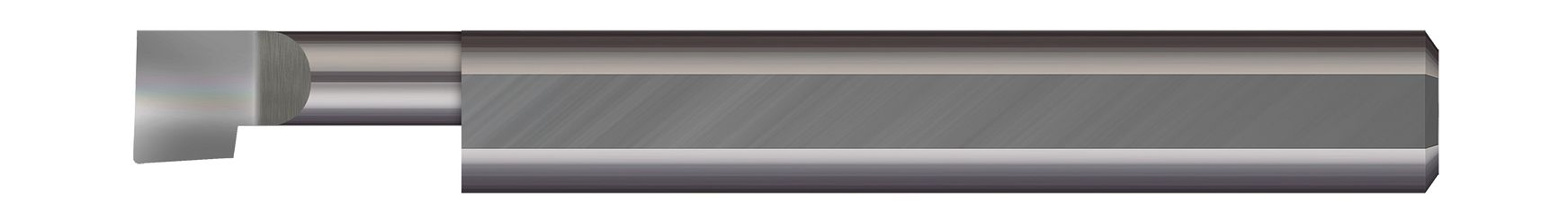

Micro 100 BB6-260400 | 0.2800" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 5/16" Shank x 2-1/2" OAL Uncoated Carbide Boring Bar

$40.20 $37.62
(You save $2.58)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10232758
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Optimized for facing and boring applications in bores .0550" and larger, this line of right hand boring tools features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .0550" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2800"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.400"
Projection (Inch) 0.0650"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1038"
Radius (Inch) 0.0060"
Neck Diameter (Inch) 0.1950"
Overall Length (Inch) 2.50" (2-1/2)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
