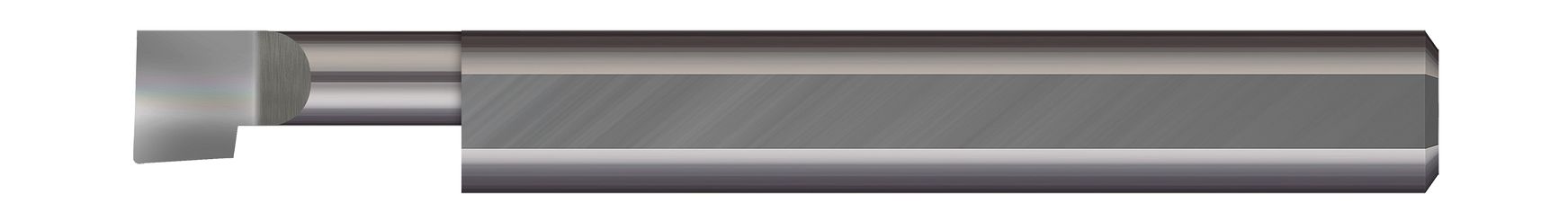

Micro 100 BB6-4601500G | 0.4800" Minimum Bore Diameter x 1.500" Maximum Bore Depth x 1/2" Shank x 3" OAL TiN Coated Carbide Boring Bar

$100.25
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.4800"
Head Width (Decimal Inch):
0.4600"
Finish/Coating:
TiN
Maximum Bore Depth (Inch):
1-1/2"
Maximum Bore Depth (Decimal Inch):
1.5000"
Projection (Decimal Inch):
0.1150"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Corner Radius (Decimal Inch):
0.0060"
Neck Diameter (Decimal Inch):
0.3450"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
interval quantity:
1
SKU:
10232637
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
BB6-4601500G

Optimized for facing and boring applications in bores .0550" and larger, this line of right hand boring tools features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .0550" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.4800"
Hand Direction Right Hand
Finish/Coating TiN
Max Bore Depth (Inch) 1.500" (1-1/2)
Projection (Inch) 0.1150"
Shank Diameter (Inch) 0.5000" (1/2)
Centerline Offset (Inch) 0.2100"
Radius (Inch) 0.0060"
Neck Diameter (Inch) 0.3450"
Overall Length (Inch) 3" (3)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.4800"
Head Width (Decimal Inch):
0.4600"
Finish/Coating:
TiN
Maximum Bore Depth (Inch):
1-1/2"
Maximum Bore Depth (Decimal Inch):
1.5000"
Projection (Decimal Inch):
0.1150"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Corner Radius (Decimal Inch):
0.0060"
Neck Diameter (Decimal Inch):
0.3450"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
interval quantity:
1
