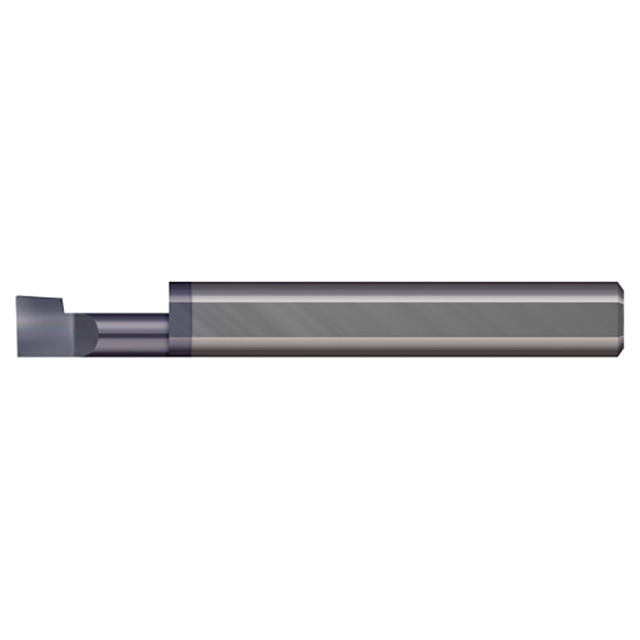

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.1600" |
| Hand Direction | Left Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Decimal Inch) | 0.900" |
| Projection (Decimal Inch) | 0.0400" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Centerline Offset (Decimal Inch) | 0.0663" |
| Radius (Decimal Inch) | 0.0060" |
| Face Dimension (Decimal Inch) | 0.094" |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.00" |
| Split Length (Inch) | 9/64" |
| Split Length (Decimal Inch) | 0.140" |
| Tooth Width (Inch) | 1/8" |
| Tooth Width (Decimal Inch) | 0.1250" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1600"
Maximum Bore Depth (Decimal Inch):
0.900"
Material:
Carbide
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Finish/Coating:
AlTiN
Ships:
From Partner Facility
IsDiscontinued:
