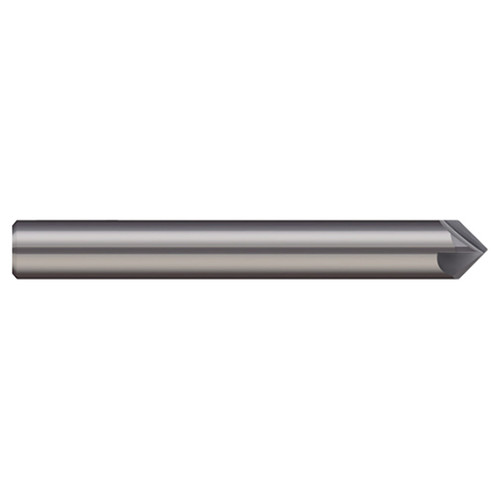

Micro 100 CS-187-100 | 3/16" Cutter Diameter x 2" OAL 100 Degree Included Angle 4 Flute Uncoated Carbide Chamfer Mill

$34.30
Ships:
From Partner Facility
Brand:
Micro 100
Cutter Head Diameter (Inch):
3/16"
Included Angle A:
100 Degree
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
4
End Type:
Single
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25126576
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Coating Uncoated
Flutes 4
Length of Cut (Inch) 1/16"
Length of Cut (Decimal Inch) 0.062"
Flute Length (Decimal Inch) 0.145"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Angle per Side 50 Degree
Included Angle 100 Degree
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.00"
Tip (Decimal Inch) 0.040"
