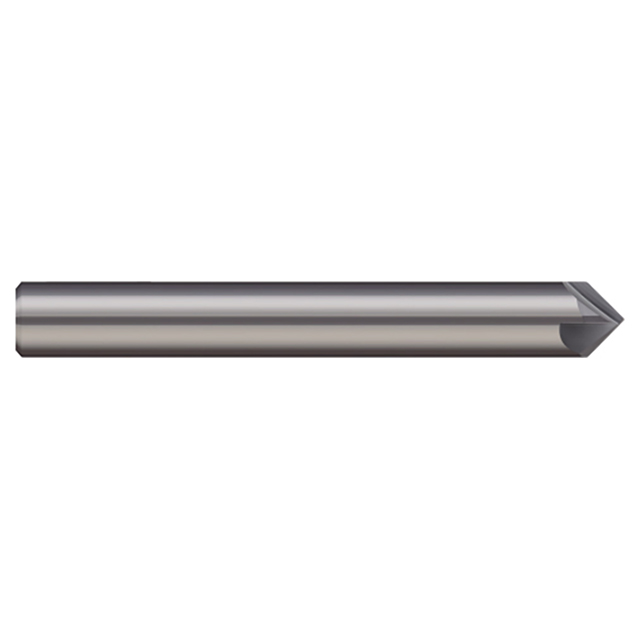

Micro 100 CS-375-090 | 3/8" Cutter Diameter x 2-1/2" OAL 90 Degree Included Angle 6 Flute Uncoated Carbide Chamfer Mill

$60.00
Ships:
From Partner Facility
Brand:
Micro 100
Cutter Head Diameter (Inch):
3/8"
Included Angle A:
90 Degree
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
6
End Type:
Single
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25126604
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Coating Uncoated
Flutes 6
Length of Cut (Decimal Inch) 0.152"
Flute Length (Decimal Inch) 0.320"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Angle per Side 45 Degree
Included Angle 90 Degree
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Tip (Decimal Inch) 0.070"
