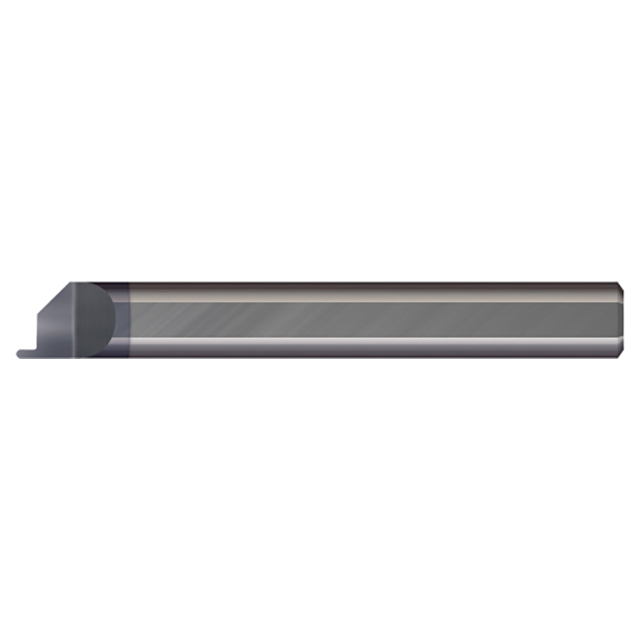

Micro 100 FGF-312-062X | 0.062" Width x 1/32" Radius x 0.0750" Projection x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Full Radius Face Grooving Tool

$49.90
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Groove Width (Decimal Inch):
0.062"
Projection (Decimal Inch):
0.0750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
AlTiN
Radius (Inch):
1/32"
Radius (Decimal Inch):
0.0310"
Ships:
From Partner Facility
SKU:
25146289
UPC:
Weight:
0.11 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Inch) 5/16"
Min Bore Diameter (Decimal Inch) 0.3120"
Hand Direction Right Hand
Finish/Coating AlTiN
Projection (Decimal Inch) 0.0750"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Radius (Inch) 1/32"
Radius (Decimal Inch) 0.0310"
Face Dimension (Inch) 5/32"
Face Dimension (Decimal Inch) 0.156"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Inch) 1/4"
Split Length (Decimal Inch) 0.250"
Tooth Width (Inch) 1/16"
Tooth Width (Decimal Inch) 0.0620"
