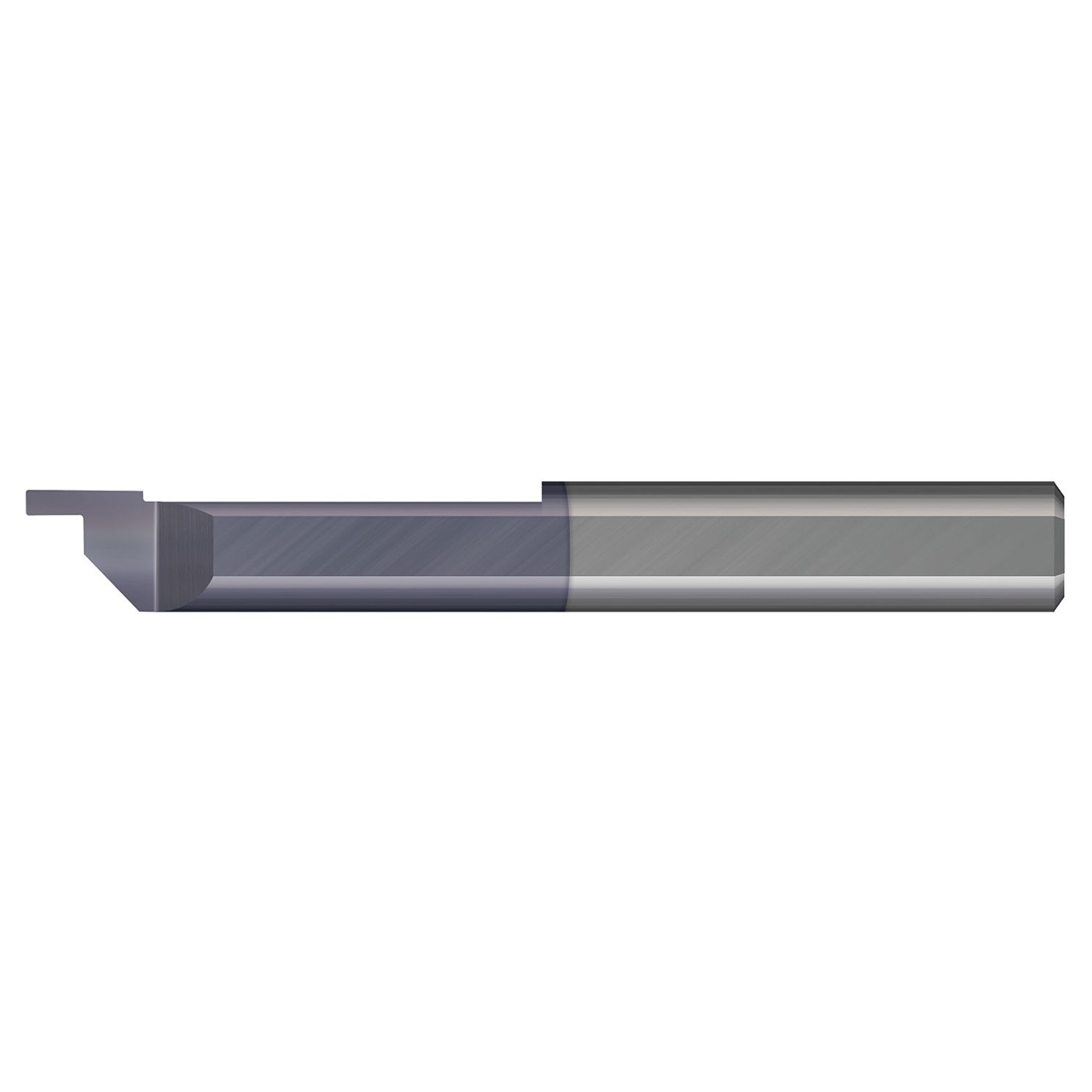

Micro 100 FGIC3-0720 | 0.3025" Minimum Bore Diameter x 1.250" (1-1/4) Maximum Bore Depth x 0.1250" (1/8) Projection x 0.0030" Radius Uncoated Right Hand Grooving Tool

Micro 100's internal tooth corner radius face grooving tools are designed to generate corner radius grooves around a boss in the face of a part for right hand grooving applications.

Features:

• Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
• Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split face geometry provides optimal edge strength
• Corner radius profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
