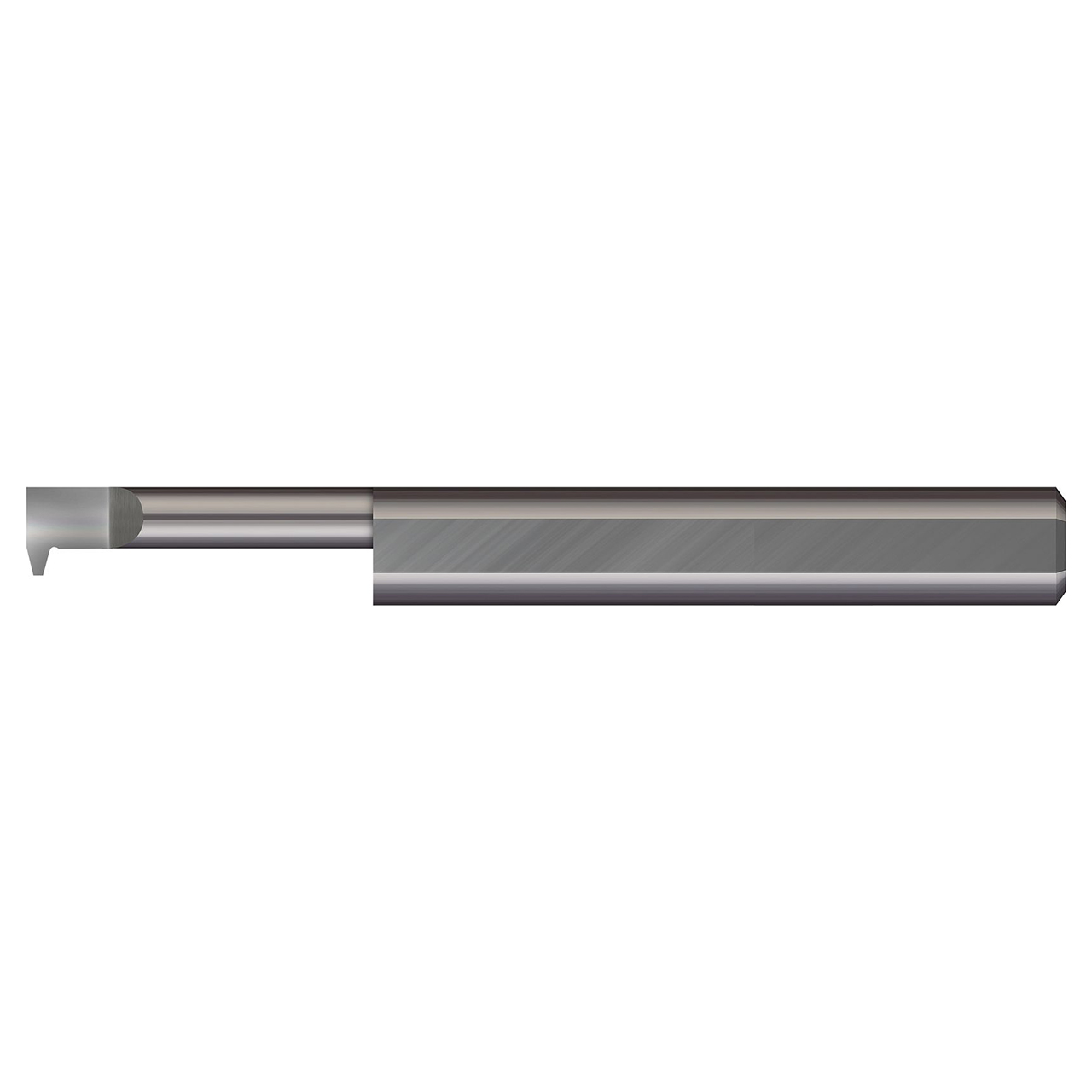

Micro 100 IAT2-1800-12 | 0.2910" Minimum Bore Diameter x 1.800" Maximum Bore Depth x 0.0850" Projection Uncoated Right Hand Threading Tool

$75.55
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.2910"
Finish/Coating:
Uncoated
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
interval quantity:
1
SKU:
25236746
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Micro 100's ACME solid carbide thread tools are optimized for cutting pitch-specific ACME threads, and feature a polished split face for improved edge retention and chip evacuation while reducing galling.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberIAT2-1800-12
Minimum Bore Diameter (Inch)0.2910"
Maximum Bore Depth (Inch)1.800"
Projection (Inch)0.0850"
Shank Diameter (Inch)0.3750" (3/8)
Centerline Offset (Inch)0.0815"
Offset (Inch)0.049"
Flat Width (Inch)0.028"
Overall Length (Inch)4.00" (4)
Neck Diameter (Inch)0.1790"
Threads Per Inch12
Hand DirectionRight Hand
CoatingUncoated
