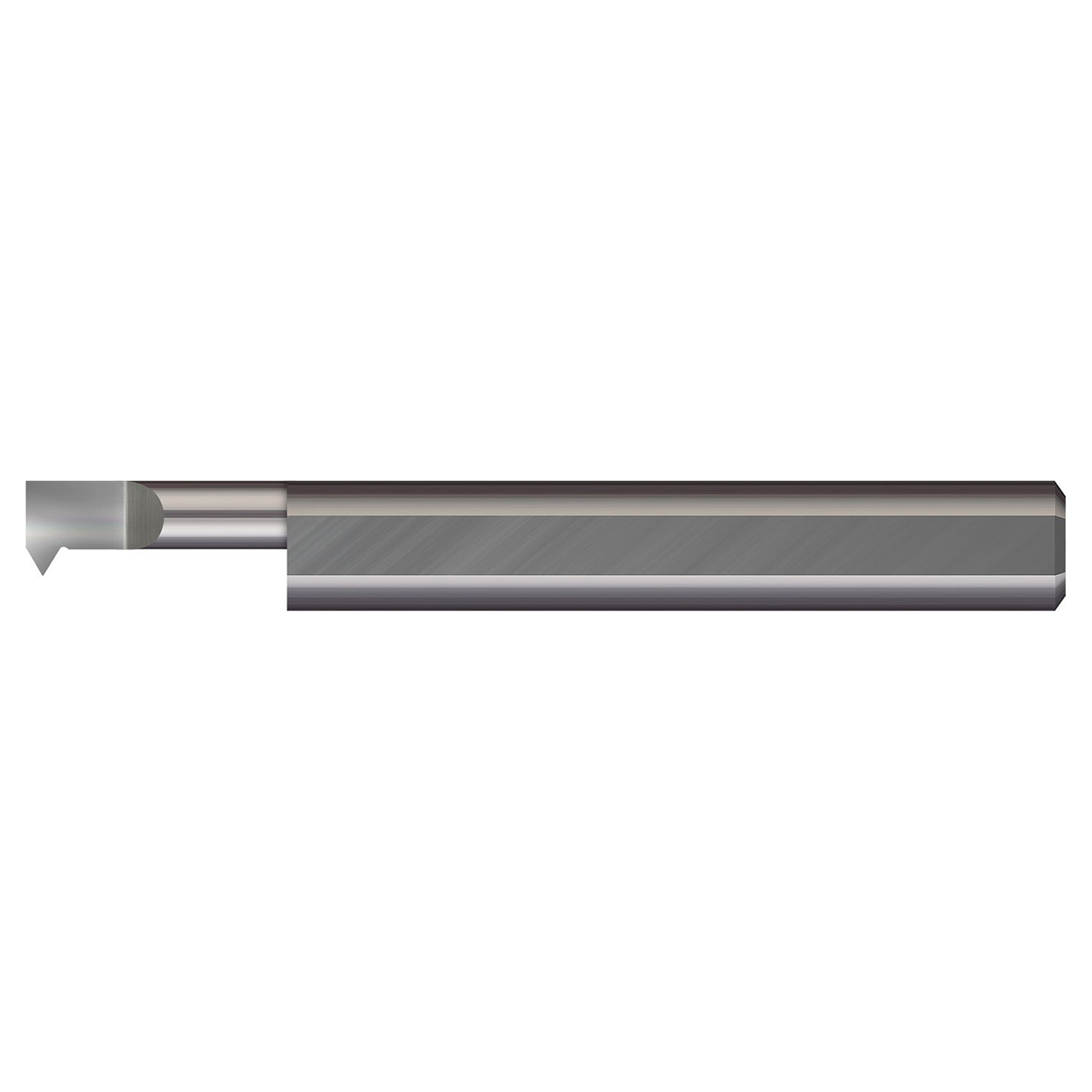

Designed for threading multiple thread pitches (ANSI, Un, and Metric 60°) in right hand threading applications, this set of solid carbide threading tools feature a 0.002" tip radius and a lockdown flat.
Features:- Polished split face for improved edge retention and chip evacuation while reducing galling
- Lockdown flat automatically locates tool on center
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | IT-2001125 |
| Minimum Bore Diameter (Inch) | 0.2220" |
| Maximum Bore Depth (Inch) | 1.125" (1-1/8) |
| Projection (Inch) | 0.0450" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.0750" |
| Offset (Inch) | 0.026" |
| Radius (Inch) | 0.0020" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Neck Diameter (Inch) | 0.1500" |
| Thread Size | 13-56 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.2220"
Head Width (Decimal Inch):
0.2000"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1-1/8"
Maximum Bore Depth (Decimal Inch):
1.1250"
Projection (Decimal Inch):
0.0450"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Radius (Decimal Inch):
0.0020"
Included Angle:
60 Degree
Neck Diameter (Decimal Inch):
0.1500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
