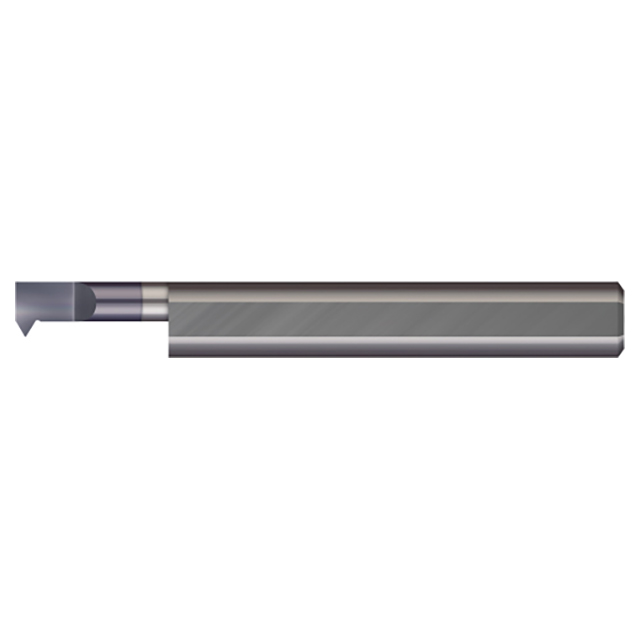

Micro 100 IT-360750X | 11-28 Thread Range x 0.3600" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL AlTiN Coated Brazed Carbide Single Point 60 Degree Right Hand Threading Tool

$73.40
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
IT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
3/8"
Shank Width/Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Minimum Bore Diameter (Decimal Inch):
0.3600"
Maximum Bore Depth (Inch):
3/4"
Maximum Bore Depth (Decimal Inch):
0.750"
Thread Size:
11-28
Finish/Coating:
AlTiN
Ships:
From Partner Facility
IsDiscontinued:
SKU:
15020572
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.3600"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 3/4"
Max Bore Depth (Decimal Inch) 0.750"
Projection (Decimal Inch) 0.0850"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.1725"
Offset (Decimal Inch) 0.049"
Radius (Decimal Inch) 0.0020"
Angle per Side 30
Included Angle 60 Degree
Face Dimension (Inch) 3/16"
Face Dimension (Decimal Inch) 0.188"
Neck Diameter (Decimal Inch) 0.2700"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.210"
Thread Size 11-28
Tooth Width (Decimal Inch) 0.0980"
