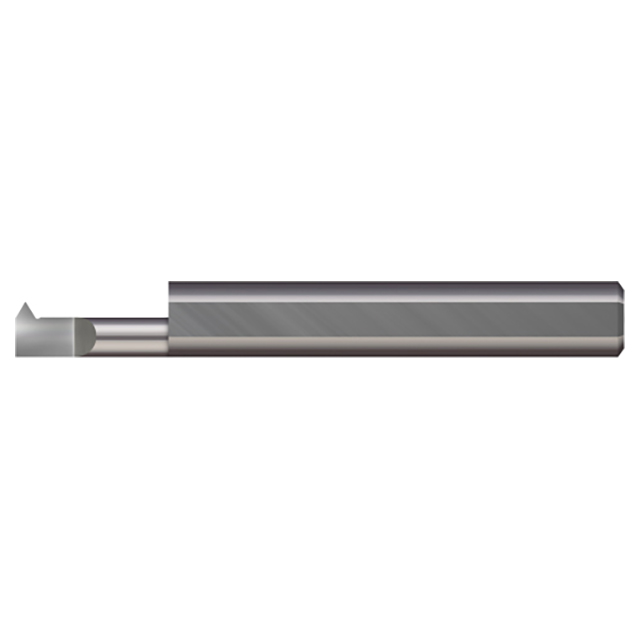

Micro 100 ITL-180350 | 24-56 Thread Range x 0.1800" Minimum Bore Diameter x 0.350" Maximum Bore Depth x 1/4" Shank x 2-1/2" OAL Uncoated Brazed Carbide Single Point 60 Degree Left Hand Threading Tool

$39.40
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
ITL
Type:
Turning
Cutting Direction:
Left Hand
Shank Width/Diameter (Inch):
1/4"
Shank Width/Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Minimum Bore Diameter (Decimal Inch):
0.1800"
Maximum Bore Depth (Decimal Inch):
0.350"
Thread Size:
24-56
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
SKU:
15020632
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.1800"
Hand Direction Left Hand
Finish/Coating Uncoated
Max Bore Depth (Decimal Inch) 0.350"
Projection (Decimal Inch) 0.0400"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Centerline Offset (Decimal Inch) 0.0550"
Offset (Decimal Inch) 0.023"
Radius (Decimal Inch) 0.0020"
Angle per Side 30
Included Angle 60 Degree
Face Dimension (Inch) 1/8"
Face Dimension (Decimal Inch) 0.125"
Neck Diameter (Decimal Inch) 0.1350"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.175"
Thread Size 24-56
Tooth Width (Decimal Inch) 0.0460"
