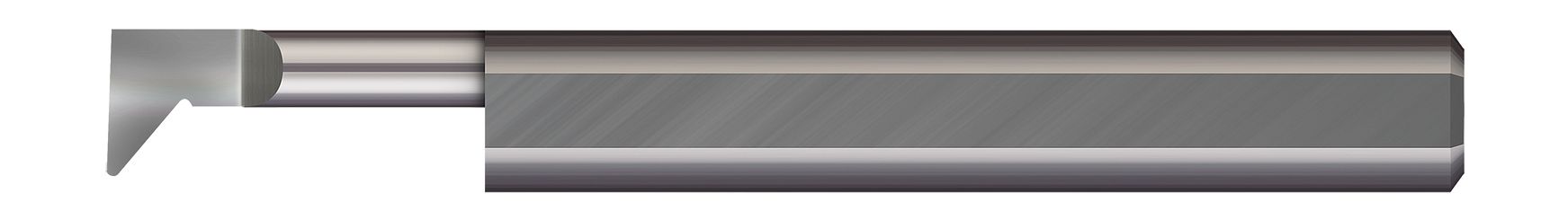

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.
- Designed for radial profiling
- Excellent choice for fine finishing
- Can be used in thread relief applications
- Split geometry makes the tool as rigid as possible
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.0550" (1.4 mm) |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.150" |
| Projection (Inch) | 0.0150" (1/64) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | -0.0125" |
| Corner Radius (Inch) | 0.002" |
| Neck Diameter (Inch) | 0.0350" (.9 mm) |
| Overall Length (Inch) | 1.50" (1-1/2) |
