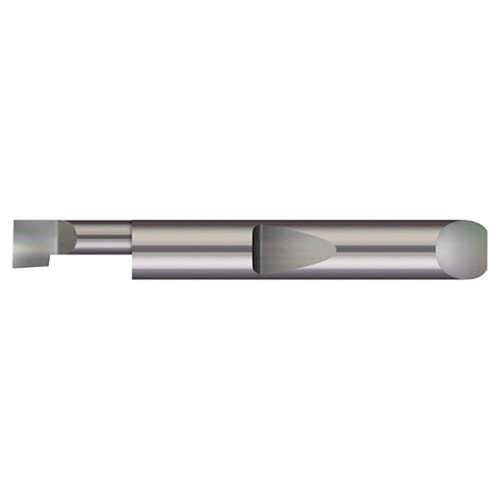

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.3200" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 1-1/4" |
| Max Bore Depth (Decimal Inch) | 1.250" |
| Projection (Decimal Inch) | 0.0800" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Centerline Offset (Decimal Inch) | 0.1325" |
| Corner Radius (Decimal Inch) | 0.005" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.2400" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.50" |
| Tooth Width (Decimal Inch) | 0.2000" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3200"
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.250"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
AlTiN
Boring Tool Type:
Right Hand- Sharp
Ships:
From Partner Facility
IsDiscontinued:
