Product Specifications
| Manufacturer Part Number | QBT-1201250 |
| Minimum Bore Diameter (Decimal Inch) | 0.1320" |
| Maximum Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Bore Diameter (Inch) | 1-1/4" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter(mm) | 0.0263" |
| Corner Radius (Decimal Inch) | 0.004" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.590" |
| Neck Diameter (Decimal Inch) | 0.1000" |
| Overall Length (Decimal Inch) | 2.50" |
| Overall Length (Inch) | 2-1/2" |
| Coating | Uncoated |

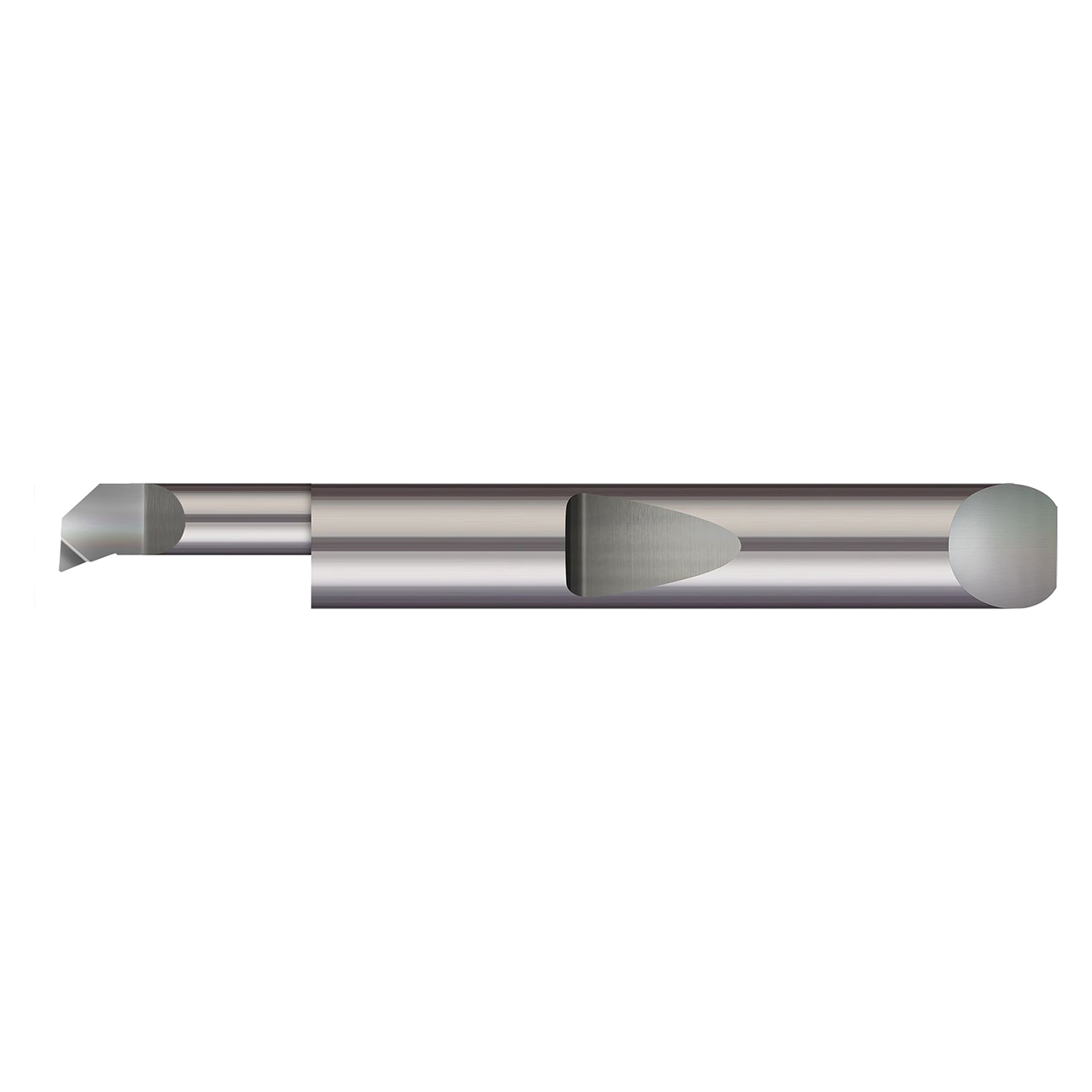

| Product Type | Boring Bar |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Micro 100
Minimum Bore Diameter (Inch):
1/8"
Minimum Bore Diameter (Decimal Inch):
0.1320"
Minimum Bore Diameter (mm):
3.35mm
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Maximum Bore Depth (mm):
31.75mm
Cutting Direction:
Right Hand
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
Uncoated
