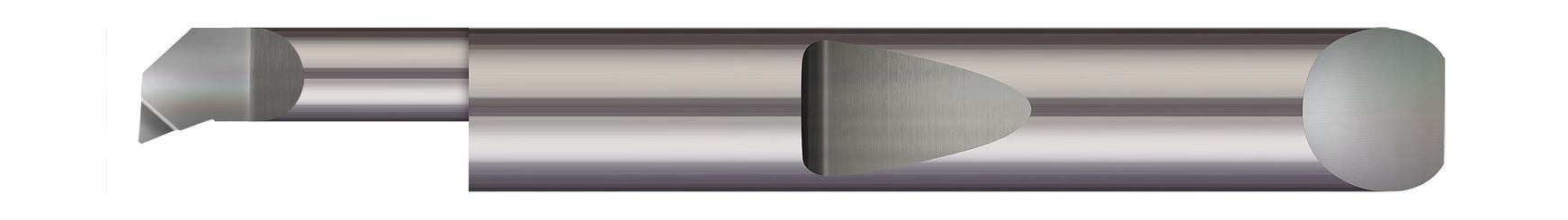

Optimized for finishing operations, Micro 100's QBT, its solid carbide top rake chipbreaker boring bar, features geometry that provides freer cutting for an overall smoother turning operation.
- Optimized for finishing operations
- Top rake geometry provides freer cutting
- Polished face for reducing galling
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1520" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.250" (1/4) |
| Projection (Inch) | 0.0250" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0463" |
| Corner Radius (Inch) | 0.004" |
| Length from Holder | 0.590" |
| Neck Diameter (Inch) | 0.1150" |
| Overall Length (Inch) | 1.50" (1-1/2) |
