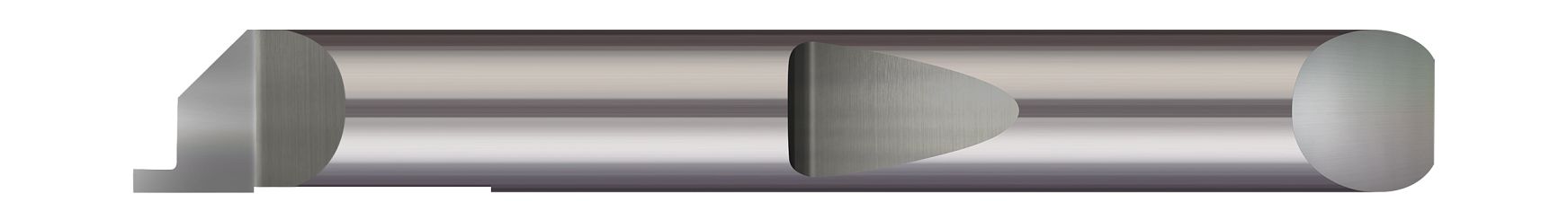

Micro 100 QFG-375-062-075X | 1/16" Width x 0.0750" Projection x 3/8" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 3/8" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

$79.45
Brand:
Micro 100
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.0750"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
interval quantity:
1
SKU:
25175703
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
QFG-375-062-075X

Related Products

Micro 100's QFG, its offering of face grooving tools, is optimized for use with the proprietary Micro-Quik quick change system to maximize productivity through reliable accuracy and locational repeatability.

  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3750" (3/8)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0750"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Length from Holder 0.853"
Overall Length (Inch) 2" (2)
Overall Reach (Inch) 0.750" (3/4)
Tooth Width (Inch) 0.0620" (1/16)
