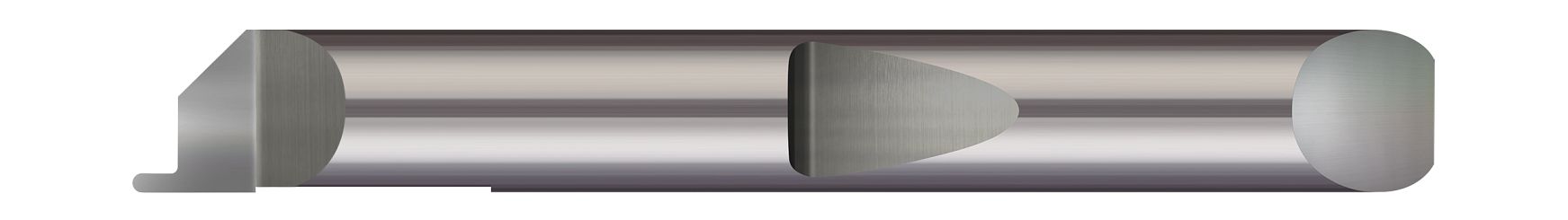

Engineered for generating full radius grooves in the face of a part, this Full Radius Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for generating full radius grooves in the face of the part
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Full radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid Carbide
Product Specifications
| Min Bore Diameter (Inch) | 0.3120" (5/16) |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.0750" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Centerline Offset (Inch) | 0.1563" (5/32) |
| Radius (Inch) | 0.0310" (1/32) |
| Length from Holder | 0.853" |
| Overall Length (Inch) | 2" (2) |
| Overall Reach (Inch) | 0.750" (3/4) |
| Tooth Width (Inch) | 0.0620" (1/16) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.0750"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
