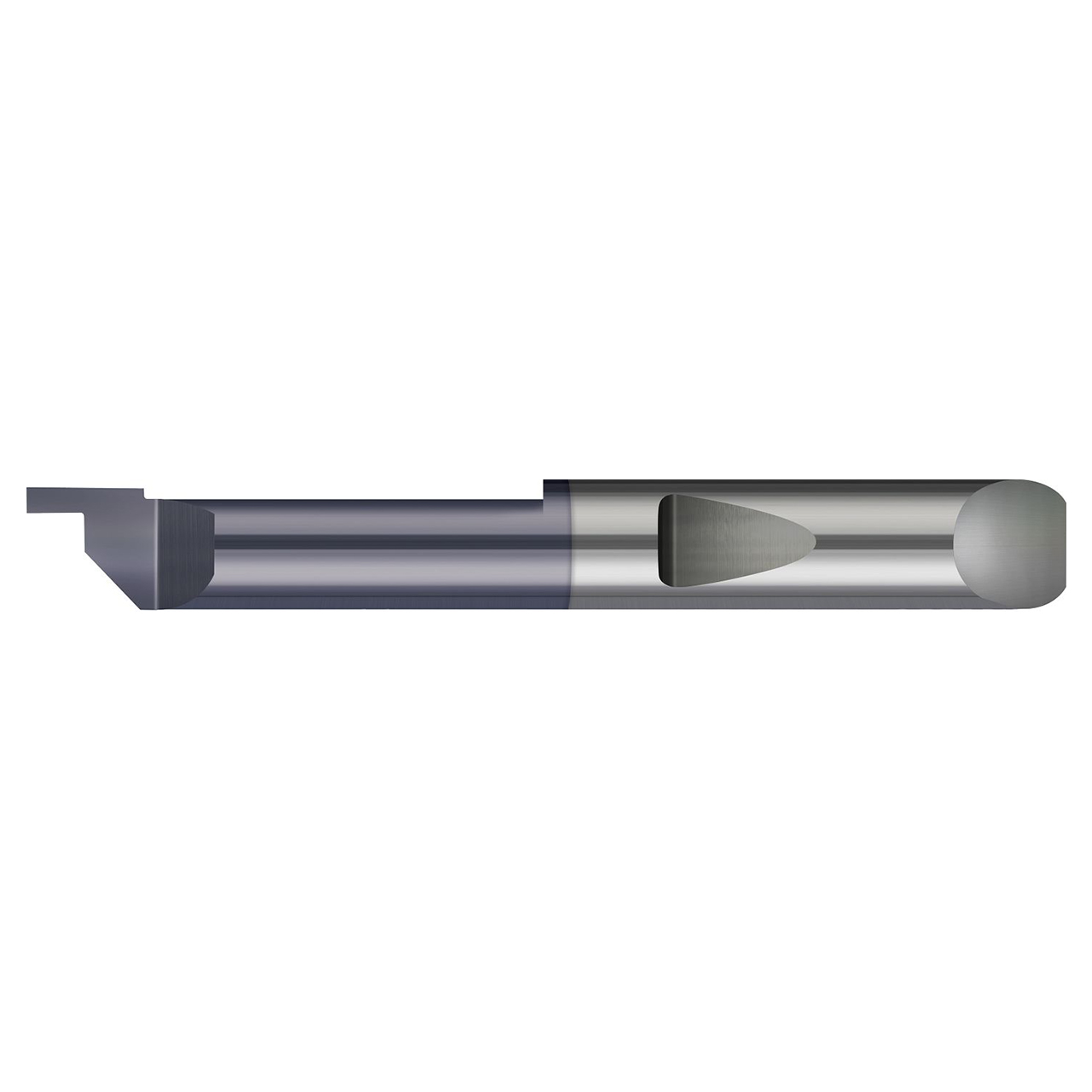

Micro 100 QFGI-0720X | 0.3025" Minimum Bore Diameter x 1.250" (1-1/4) Maximum Bore Depth x 0.1250" (1/8) Projection AlTiN Coated Right Hand Quick Change Grooving Tool

$62.05
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3025"
Head Width (Decimal Inch):
0.3030"
Finish/Coating:
AlTiN
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Projection (Decimal Inch):
0.1250"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Neck Diameter (Decimal Inch):
0.2775"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Reach (Inch):
1-1/4"
Overall Reach (Decimal Inch):
1.2500"
SKU:
25236802
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Designed to generate square grooves around a boss in the face of a part for right hand grooving applications, these Micro 100 Internal Tooth Face Grooving Tools significantly reduce cycle times.

Features:
  • Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
  • Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQFGI-0720X
Minimum Bore Diameter (Inch)0.3025"
Maximum Bore Depth (Inch)1.250" (1-1/4)
Projection (Inch)0.1250" (1/8)
Shank Diameter (Inch)0.3125" (5/16)
Centerline Offset (Inch)0.1463"
Length from Holder (Inch)1.353"
Overall Length (Inch)2.50" (2-1/2)
Overall Reach (Inch)1.250" (1-1/4)
Neck Diameter (Inch)0.2775"
Tooth Width (Inch)0.0620" (1/16)
Hand DirectionRight Hand
CoatingAlTiN
