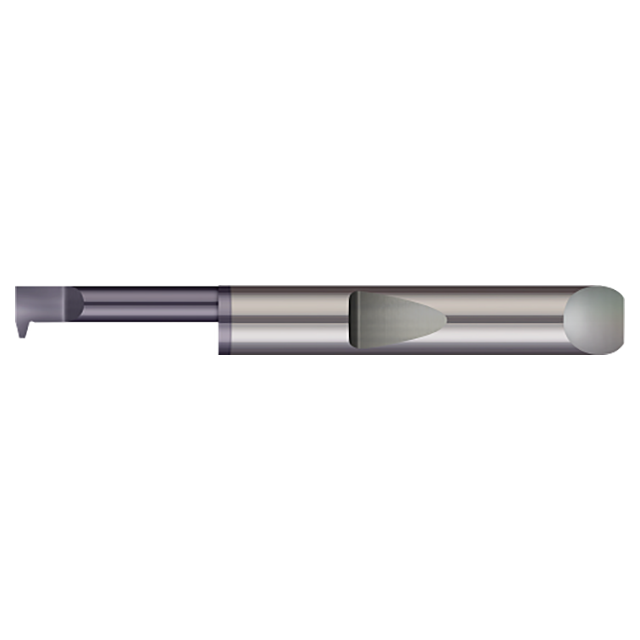

Micro 100 QIAT2-1250-14X | 0.241" Minimum Bore Diameter x 1.250" Maximum Bore Depth x 5/16" Shank x 2-1/2" OAL AlTiN Coated Quick Change Threading Tool - ACME Thread

Brand:

Micro 100

Minimum Bore Diameter (Inch):

20/83"

Minimum Bore Diameter (Decimal Inch):

0.2410"

Minimum Bore Diameter (mm):

6.12mm

Head Width (Inch):

7/32"

Head Width (Decimal Inch):

0.2190"

Head Width (mm):

5.56mm

Maximum Bore Depth (Inch):

1-1/4"

Maximum Bore Depth (Decimal Inch):

1.2500"

Maximum Bore Depth (Inch):

31.75mm

Projection (Inch):

4/57"

Projection (Decimal Inch):

0.0700"

Projection (mm):

1.78mm

Shank Diameter (Inch):

5/16"

Shank Diameter (Decimal Inch):

0.3120"

Shank Diameter (mm):

7.92mm

Finish/Coating:

AlTiN

interval quantity:

1

SKU:

25396049

Weight:

0.10 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
