Product Specifications
| Manufacturer Part Number | QIT-080600 |
| Minimum Bore Diameter (Decimal Inch) | 0.0900" |
| Maximum Bore Diameter (Decimal Inch) | 0.600" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Projection (Decimal Inch) | 3/16" |
| Shank Diameter(mm) | 0.0137" |
| Offset (Decimal Inch) | 0.015" |
| Offset (Inch) | 1/64" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.090" |
| Neck Diameter (Decimal Inch) | 0.0600" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Thread Size | 28-56" |
| TPI | 28-56 TPI |
| Coating | Uncoated |

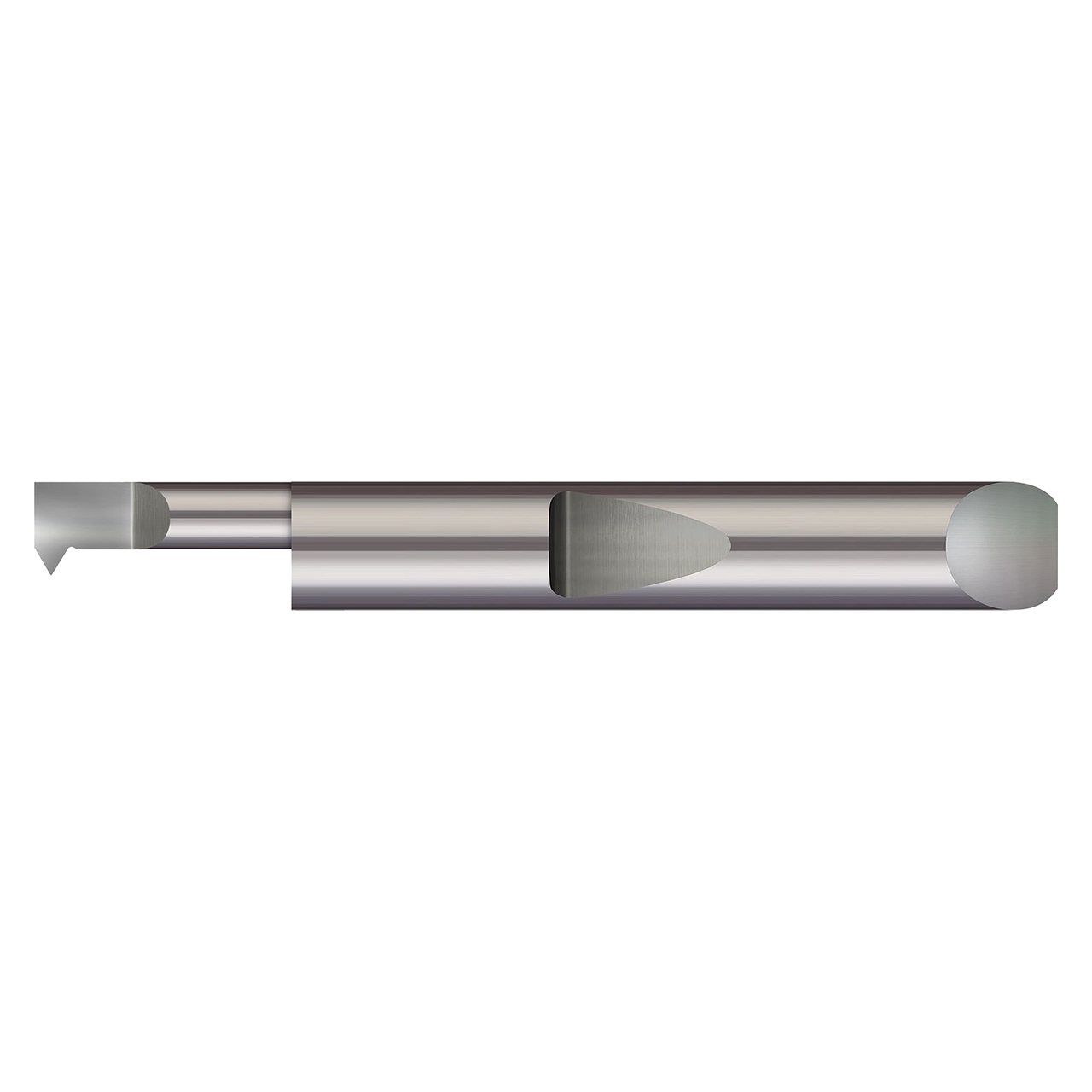

| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
