Product Specifications

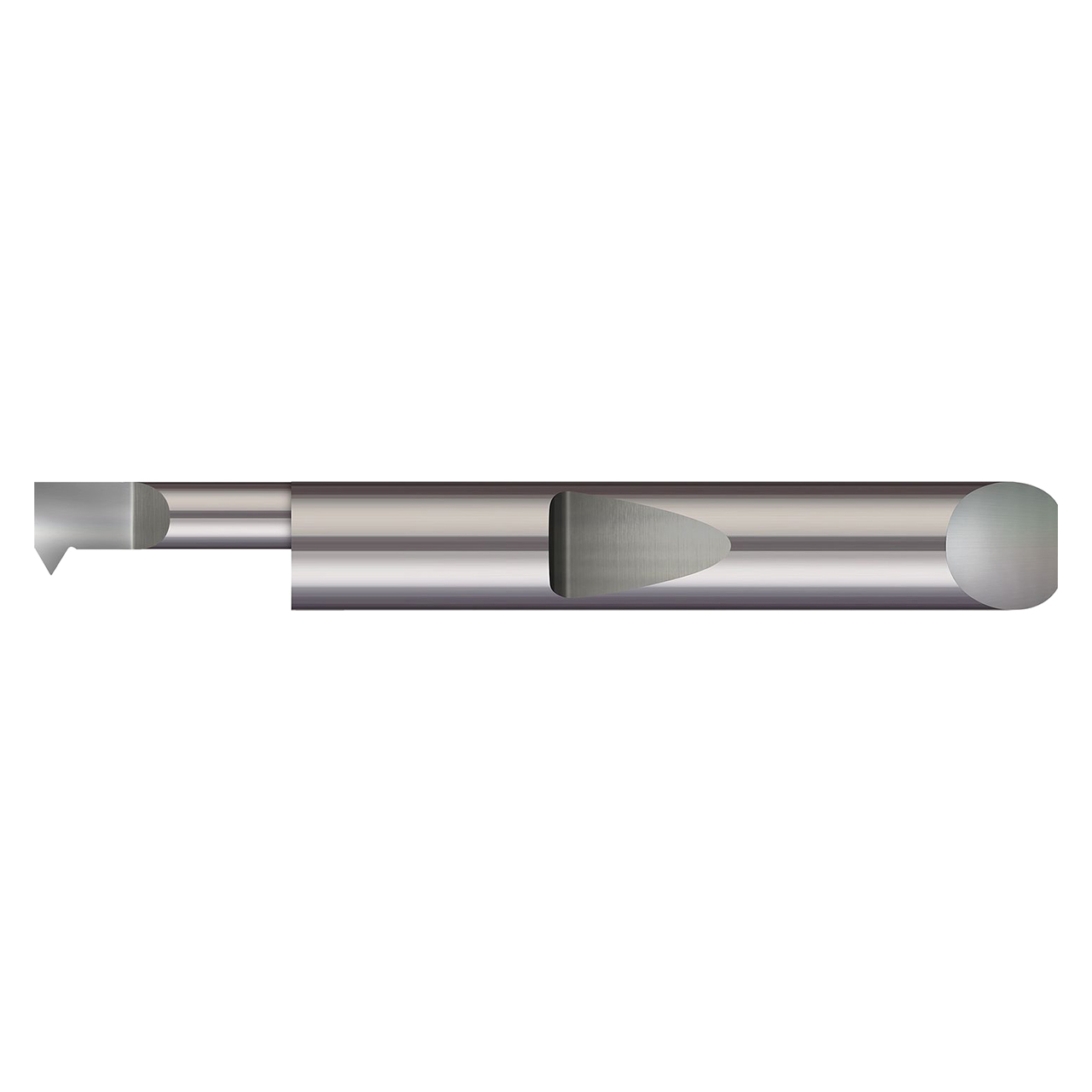

| Manufacturer Part Number | QIT-080600X |
| Minimum Bore Diameter (Decimal Inch) | 0.0900" |
| Maximum Bore Diameter (Decimal Inch) | 0.600" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Projection (Decimal Inch) | 3/16" |
| Shank Diameter(mm) | 0.0137" |
| Offset (Decimal Inch) | 0.015" |
| Offset (Inch) | 1/64" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.090" |
| Neck Diameter (Decimal Inch) | 0.0600" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Thread Size | 28-56" |
| TPI | 28-56 TPI |
| Coating | AlTiN |
| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0900"
Maximum Bore Depth (Decimal Inch):
0.6000"
Neck Diameter (Decimal Inch):
0.0600"
Head Width (Decimal Inch):
0.0800"
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.0200"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (Inch):
3/16"
Corner Radius (Decimal Inch):
0.0020"
Threads per Inch (TPI):
28-56
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
