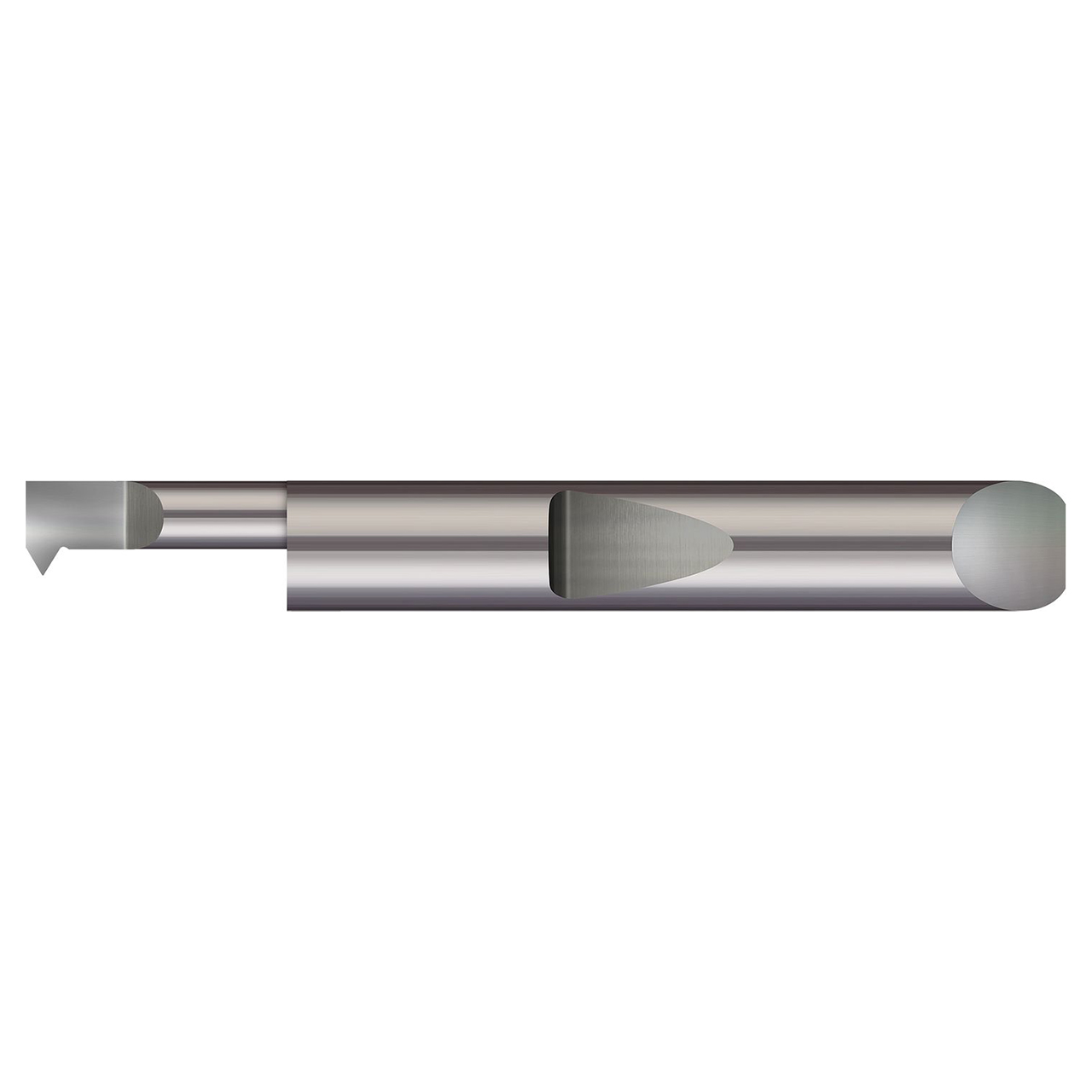

Micro 100 QIT-1401000 | 16-56 Thread 0.1560" (5/32) Minimum Bore Diameter x 1.000" (1) Maximum Bore Depth x 0.0350" Projection x 0.002" Radius Uncoated Right Hand Quick Change Threading Tool

The fully stocked AlTiN coated option on Micro 100's QIT product line, its solid carbide single point threading tools, provides added lubricity and increased wear resistance in difficult to machine materials.

• Designed for threading in bores 0.070" and larger
• Able to cut multiple thread pitches (ANSI, UN, & Metric 60 Degree) with one tool
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• 0.002" tip radius
• Coolant fed enabled shank design
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
