Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.3200" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 3/4" |
| Max Bore Depth (Decimal Inch) | 0.750" |
| Projection (Decimal Inch) | 0.0750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Centerline Offset (Decimal Inch) | 0.1325" |
| Offset (Decimal Inch) | 0.049" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.2450" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.00" |
| Thread Size | 12-32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

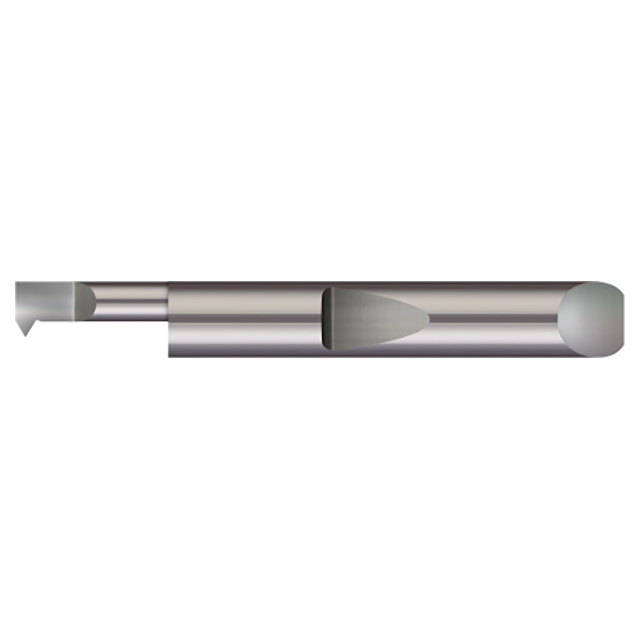

Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
QIT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
3/8"
Shank Width/Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Minimum Bore Diameter (Decimal Inch):
0.3200"
Maximum Bore Depth (Inch):
3/4"
Maximum Bore Depth (Decimal Inch):
0.750"
Finish/Coating:
Uncoated
Radius (Decimal Inch):
0.002"
Thread Range:
12-32
Ships:
From Partner Facility
IsDiscontinued:
