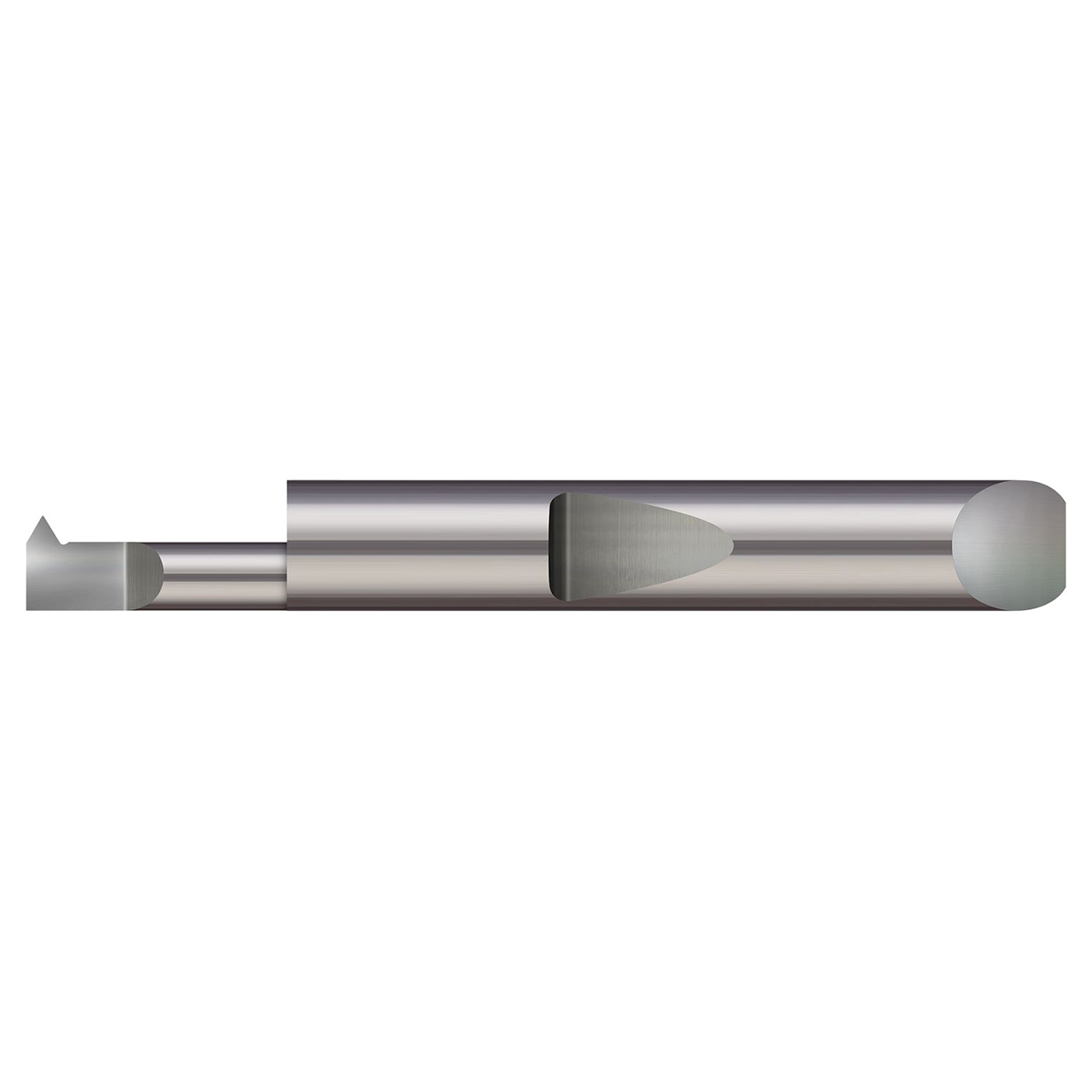

Micro 100 QITL-160750 | 14-56 Thread 0.1820" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.0400" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

$42.65
SKU:
25236963
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60°) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQITL-160750
Minimum Bore Diameter (Inch)0.1820"
Maximum Bore Depth (Inch)0.750" (3/4)
Projection (Inch)0.0400"
Shank Diameter (Inch)0.1875" (3/16)
Centerline Offset (Inch)0.0662"
Offset (Inch)0.023"
Corner Radius (Inch)0.002"
Length from Holder (Inch)1.090"
Overall Length (Inch)2.00" (2)
Neck Diameter (Inch)0.1150"
Thread Size14-56
Hand DirectionLeft Hand
CoatingUncoated
