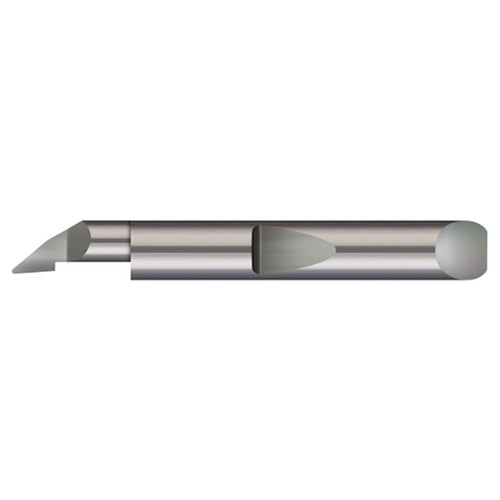

Micro 100 QPF-3601000 | 0.3600" Minimum Bore Diameter x 1.000" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Quick Change Axial & Radial Profiling Tool

$70.40
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3600"
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.000"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
Uncoated
Profiling Tool Type:
Axial & Radial
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25130047
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.3600"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1"
Max Bore Depth (Decimal Inch) 1.000"
Projection (Decimal Inch) 0.0300"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.1725"
Offset (Decimal Inch) 0.195"
Corner Radius (Decimal Inch) 0.008"
Face Dimension (Inch) 3/16"
Face Dimension (Decimal Inch) 0.188"
Length from Holder (Decimal Inch) 1.353"
Neck Diameter (Decimal Inch) 0.3300"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.290"
Tooth Width (Decimal Inch) 0.2750"
