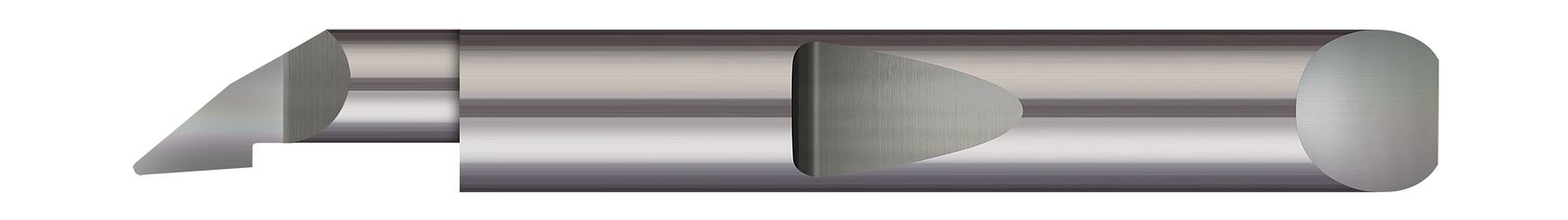

Micro 100 QPF8-260750X | 0.2800" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Profiling Tool

$57.30 $53.69
(You save $3.61)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25201931
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The unique design of this tool maximizes tool versatility and part feature creation, and has a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versitilty and part feature creation
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2800"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0300"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1038"
Corner Radius (Inch) 0.008"
Length from Holder 0.853"
Neck Diameter (Inch) 0.2300"
Overall Length (Inch) 2.50" (2-1/2)
