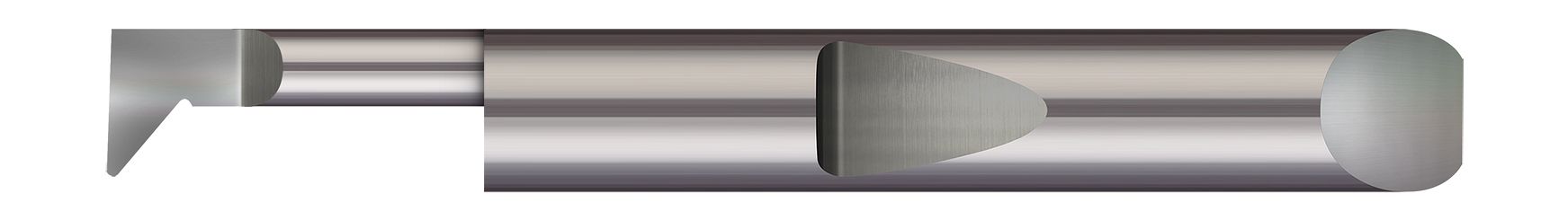

Micro 100 QPR5-100200X | 0.1100" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Profiling Tool

$34.95 $33.35
(You save $1.60)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25202249
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
QPR5-100200X

Accomplish radial profiling, fine finishing, and even thread relief, with the QPR, Micro 100's line of tooling designed with split geometry for maximum rigidity and a coolant fed enabled shank design.

  • Designed for radial profiling
  • Excellent choice for fine finishing
  • Can be used in thread relief applications
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1100" (2.8 mm)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.200"
Projection (Inch) 0.0350"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0063"
Corner Radius (Inch) 0.005"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0650"
Overall Length (Inch) 1.50" (1-1/2)
