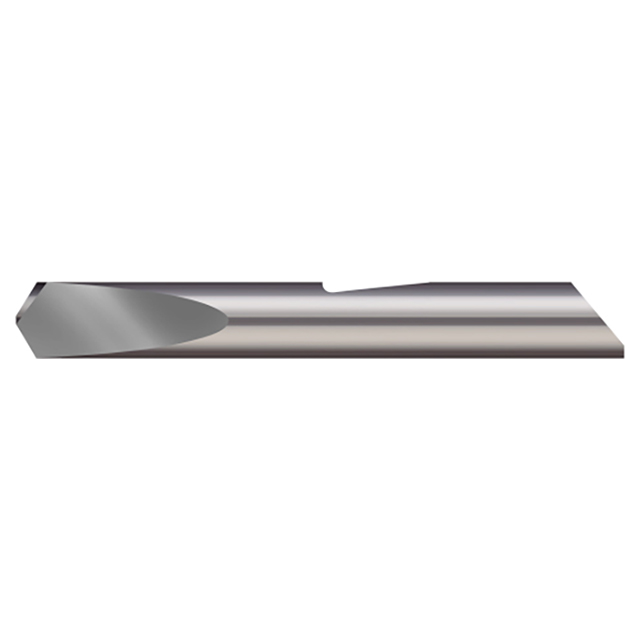

Product Specifications
| Drill Diameter (Inch) | 1/8" |
| Drill Diameter (Decimal Inch) | 0.1250" |
| Finish/Coating | Uncoated |
| Max Bore Depth (Decimal Inch) | 1.035" |
| Flute Length (Decimal Inch) | 0.428" |
| Flute Taper Included | 14 |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Length from Holder (Decimal Inch) | 0.590" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.50" |
| Point Angle | 118 Degree |
| Web Thickness (Decimal Inch) | 0.020" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Micro 100
Minimum Drill Diameter (Inch):
1/8"
Minimum Drill Diameter (Decimal Inch):
0.1250"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.50"
Spade Drill Length:
0.590"
Material:
Carbide
Finish/Coating:
Uncoated
Ships:
From Partner Facility
interval quantity:
1
