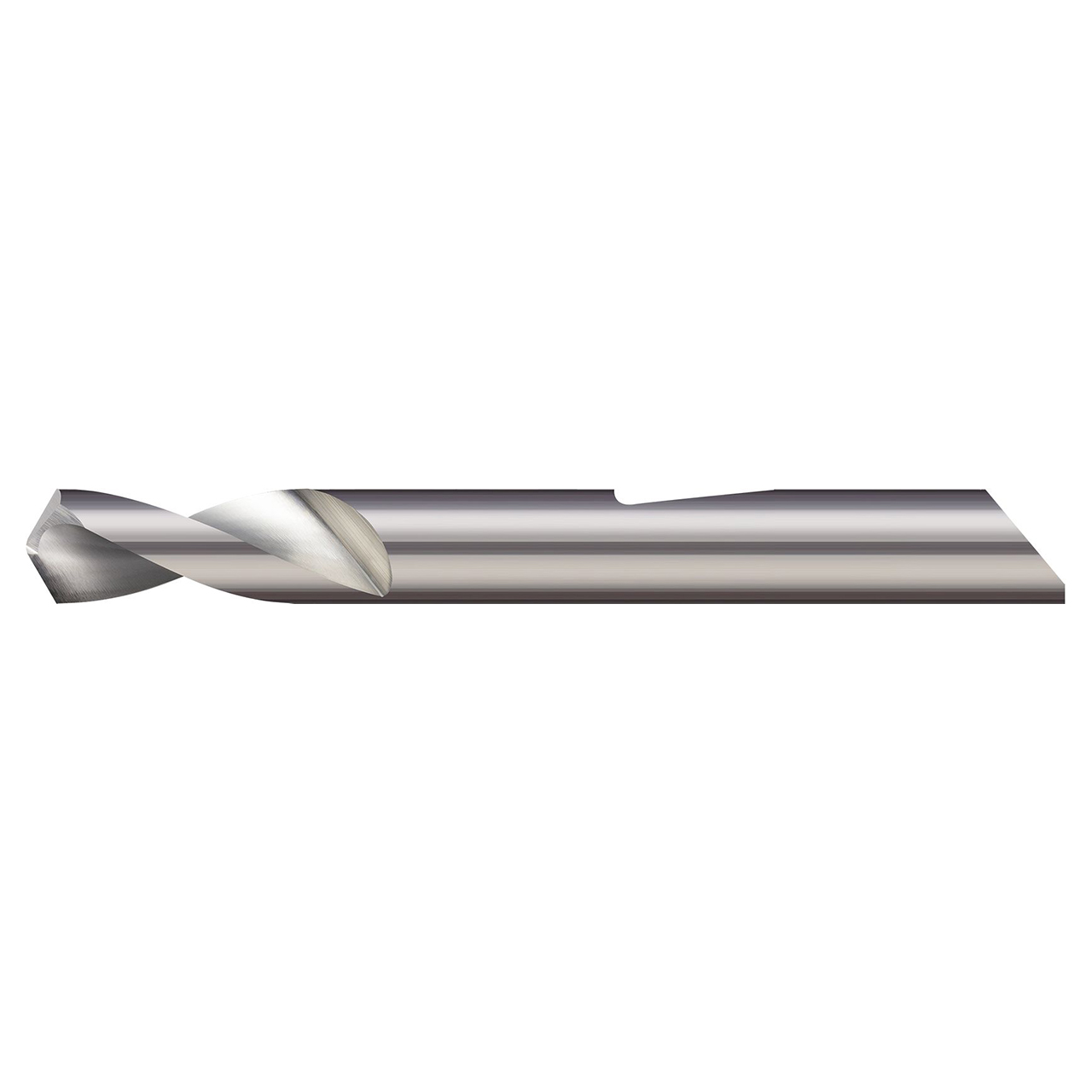

Micro 100 QSPD-118-100X | 0.1181" Drill Diameter x 0.354" Flute Length AlTiN Coated 2 Flute Quick Change Spotting Drill

$39.05
Brand:
Micro 100
Drill Diameter (Decimal Inch):
0.1181"
Drill Diameter (mm):
3.00mm
Finish/Coating:
AlTiN
Number of Flutes:
2
Flute Length (Decimal Inch):
0.3540"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Point Angle:
100 Degree
interval quantity:
1
SKU:
10257128
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Micro 100's product line of spotting drills, can also be utilized for countersinking and chamfering existing holes and features a narrow web thickness for spotting small diameter holes.

Features:
  • 90 Degree, 120 Degree, and 140 Degree included angles
  • Narrow web thickness allows for spotting small diameter holes
  • Point geometry designed for self-centering
  • 2 Flutes
  • Coolant fed enabled shank design
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQSPD-118-100X
Drill Diameter (Inch)0.1181"
Flute Length (Inch)0.354"
Shank Diameter (Inch)0.1875" (3/16)
Length from Holder (Inch)0.590"
Overall Length (Inch)1.50" (1-1/2)
Point Angle (Degree)100 Degree
TypeI
Web Thickness (Inch)0.008"
Number of Flutes2
CoatingAlTiN
