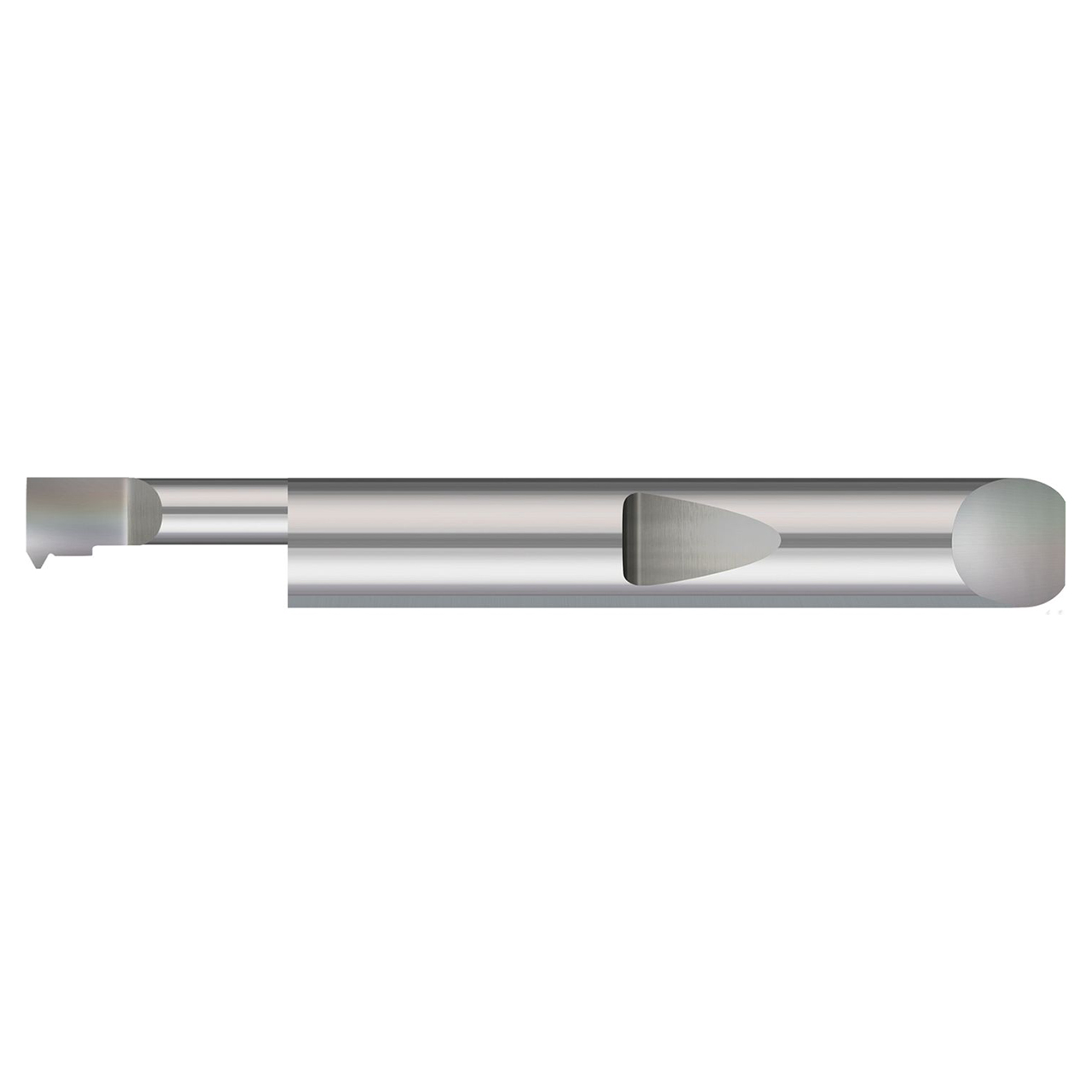

These quick change metric topping single point threading tools are designed for threading 60° metric pitches in a right hand topping application, and work to generate a controlled thread height with a reduction in burr formation.
Features:- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Coolant fed enabled shank design
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | QTMT-080125-22 |
| Minimum Bore Diameter (mm) | 6.000mm |
| Maximum Bore Depth (mm) | 22.00mm |
| Projection (mm) | 0.677mm |
| Shank Diameter (Inch) | 0.3125" |
| Centerline Offset (mm) | 1.530mm |
| Offset (mm) | 0.607mm |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Length from Holder (mm) | 1.35mm |
| Overall Length (Inch) | 2.50" |
| Neck Diameter (mm) | 4.660mm |
| Thread Size | M8x1.25 |
| Metric | Y |
| Hand Direction | Right Hand |
| Coating | Uncoated |
