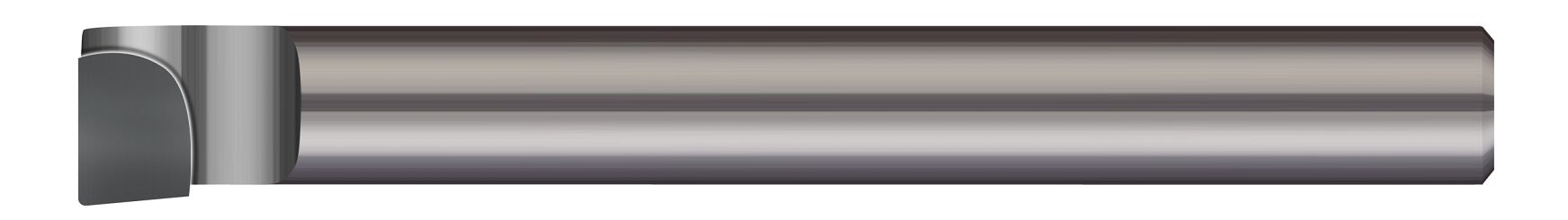

This fully stocked offering of Micro 100 right hand, corner radius profile Boring Tools is engineered to excel at increased feed rates while leaving an improved surface finish during facing and boring applications.
- Designed for right hand facing and boring applications in bores .320" and larger
- Long shank enables flexible reach options (preset at any length)
- Corner radius profile
- Steel shank with brazed tip
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.6250" (5/8) |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.3750" (3/8) |
| Radius (Inch) | 0.0080" |
| Brazed Insert Length (Inch) | 0.250" (1/4) |
| Brazed Insert Width (Inch) | 0.500" (1/2) |
| Overall Length (Inch) | 7" (7) |
